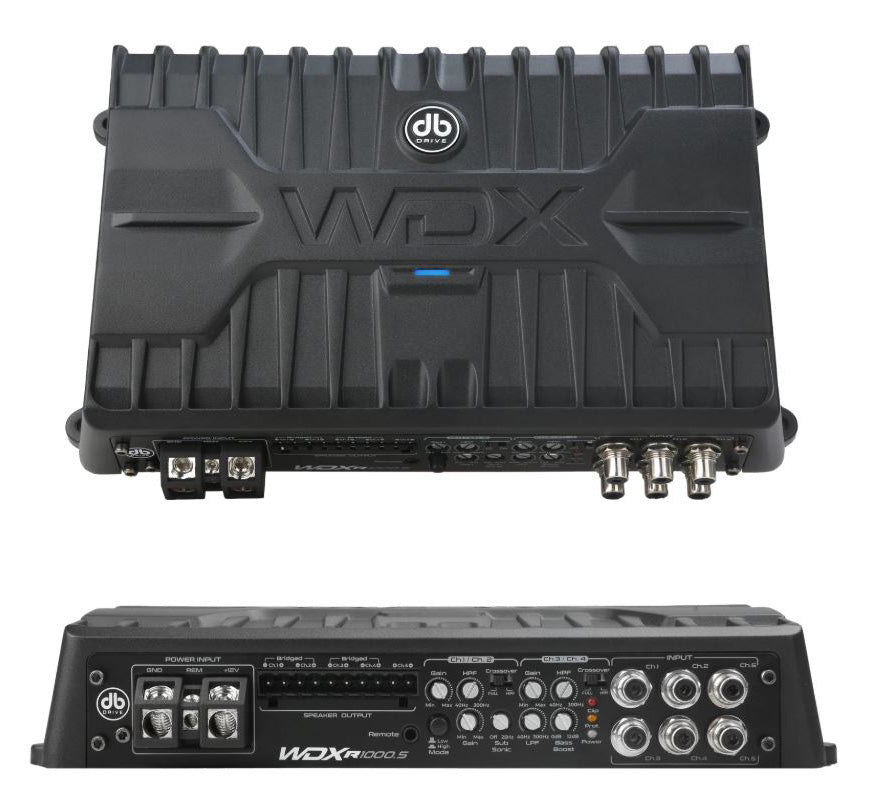

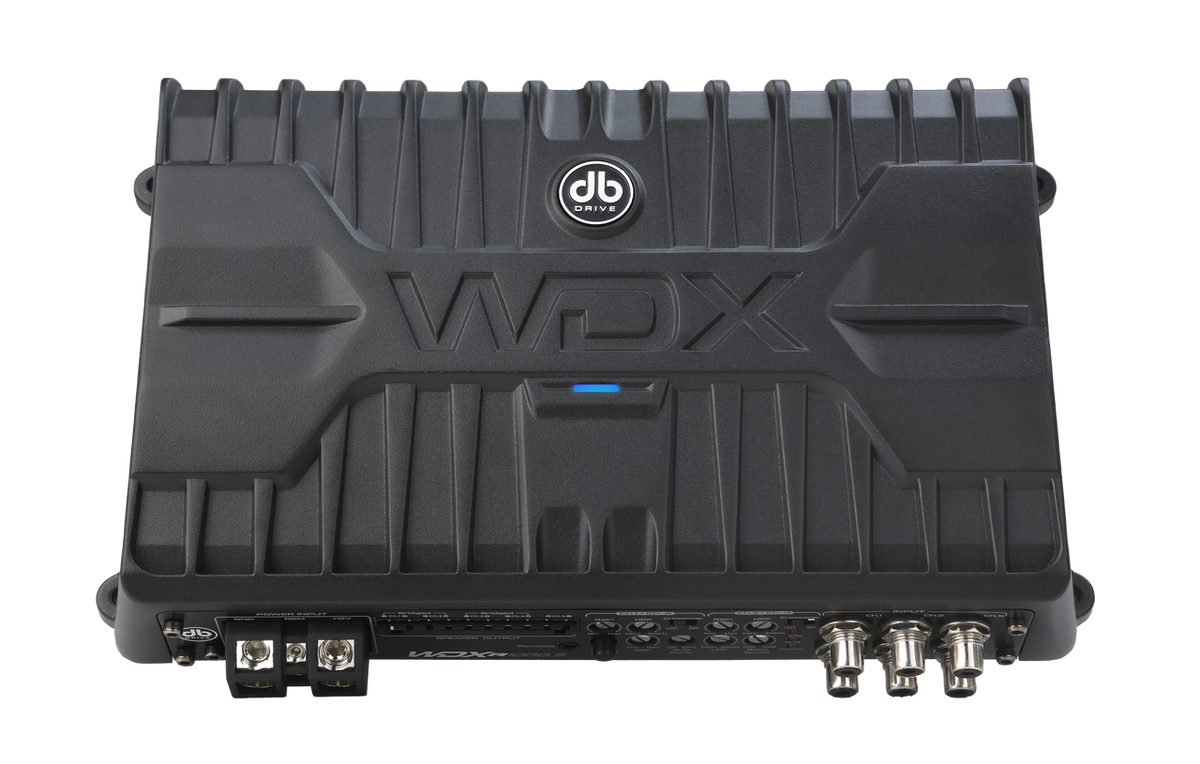

DB Drive WDX-R1000.5 5-Channel Class D Amplifier
🔥 Power your entire system with one compact, high-performance amplifier!
The DB Drive WDX-R1000.5 is a powerful 5-channel Class D amplifier designed to run your front speakers, rear speakers and subwoofer from a single amp. 🚗🔊
Combining high-efficiency Class D technology with DB Drive's advanced SESI system monitoring, APC protection and intelligent thermal management, the WDX-R1000.5 delivers stable, clean and reliable power even in demanding car audio installations.
⚡ Serious 5-Channel Power
Run a complete system without the need for multiple amplifiers:
- 🔊 4 x 125W + 250W @ 4Ω
- 🔥 4 x 200W + 500W @ 2Ω
- ⚡ 2Ω Stereo / 4Ω Bridged Capable
- 🎛️ Remote Bass Control Included
🔥 Advanced DB Drive Technology
- ⚡ High-Efficiency Class D Technology
- 🎚️ ACT – Adaptive Crossover Technology
- 🛡️ APC – Audio Protection Circuit
- 📊 SESI – Signal Evaluation Status Indicator
- ❄️ CHM – Collective Heat Management
- 🔋 PWM MOSFET Regulated Power Supply
- 🔌 Large-Gauge Power Wire Inputs
- 🔊 Direct-Connect Speaker Terminals
- 🎚️ Selectable Low-Level RCA Input Range
🎛️ Built-In Audio Control
Fine-tune your complete system directly from the amplifier.
- 🎵 CH 1–2 High-Pass Crossover: 40Hz–300Hz
- 🎵 CH 3–4 High-Pass Crossover: 40Hz–300Hz
- 🔊 CH 5 Low-Pass Crossover: 40Hz–300Hz
- 🔉 Subsonic Filter: 0–25Hz
- 📈 Crossover Slope: 12dB
- 💥 Bass Boost @ 45Hz: 0–12dB
- 🎚️ Input Sensitivity: 425mV–8.5V
- 🎶 Signal-to-Noise Ratio: >98dB
📏 Compact Design
Despite its serious output, the WDX-R1000.5 maintains a compact footprint for easier installation.
Length: 10.26" / 260.7 mm
Width: 6.12" / 155.5 mm
Height: 1.97" / 50 mm
📦 What's Included
1x DB Drive WDX-R1000.5 5-Channel Amplifier
1x Remote Bass Control
