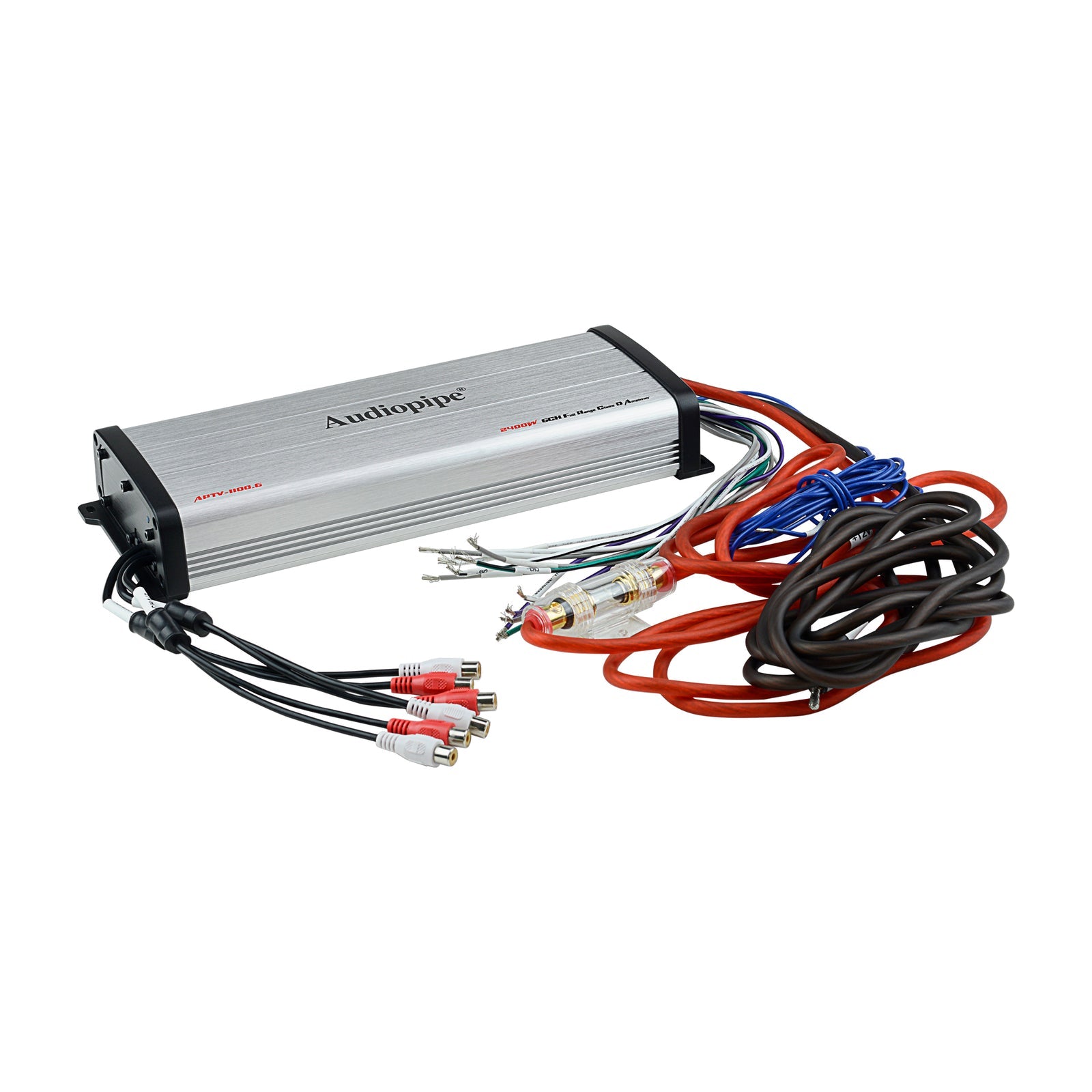

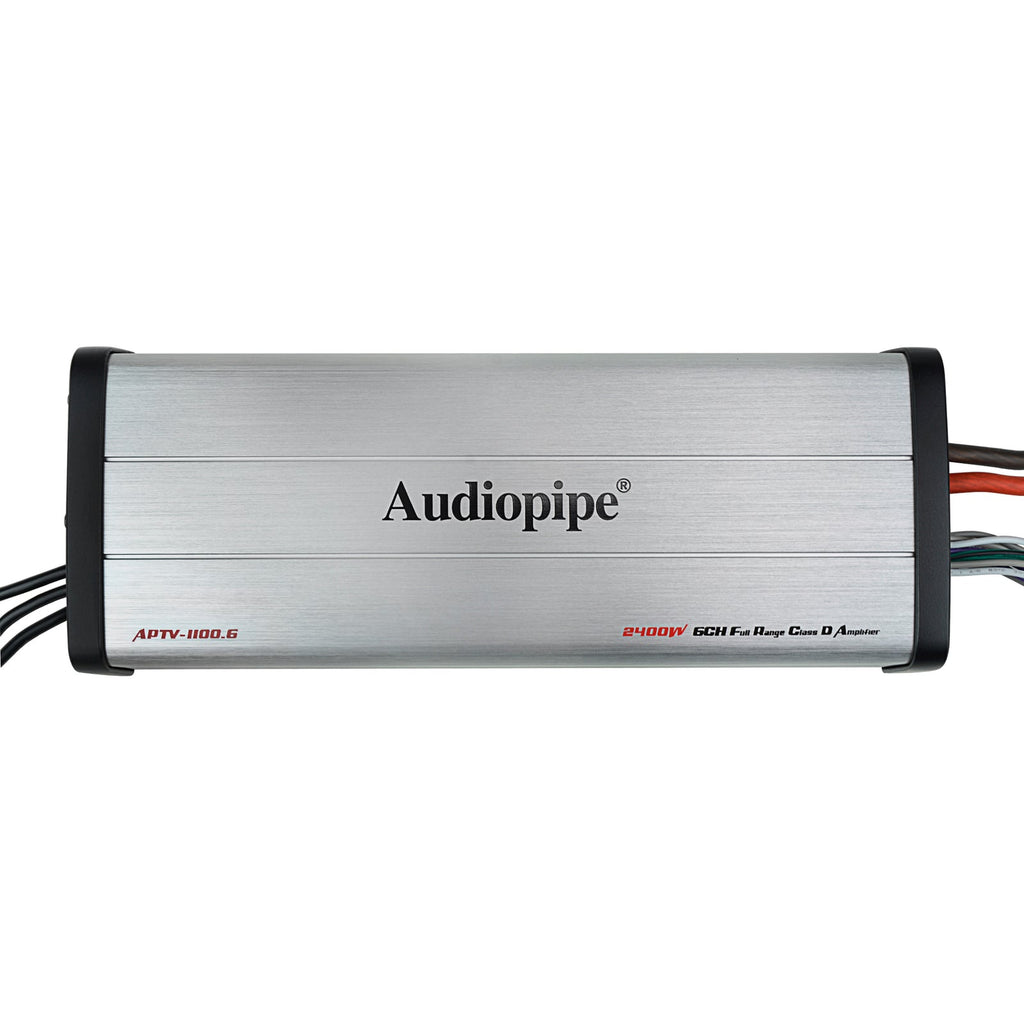

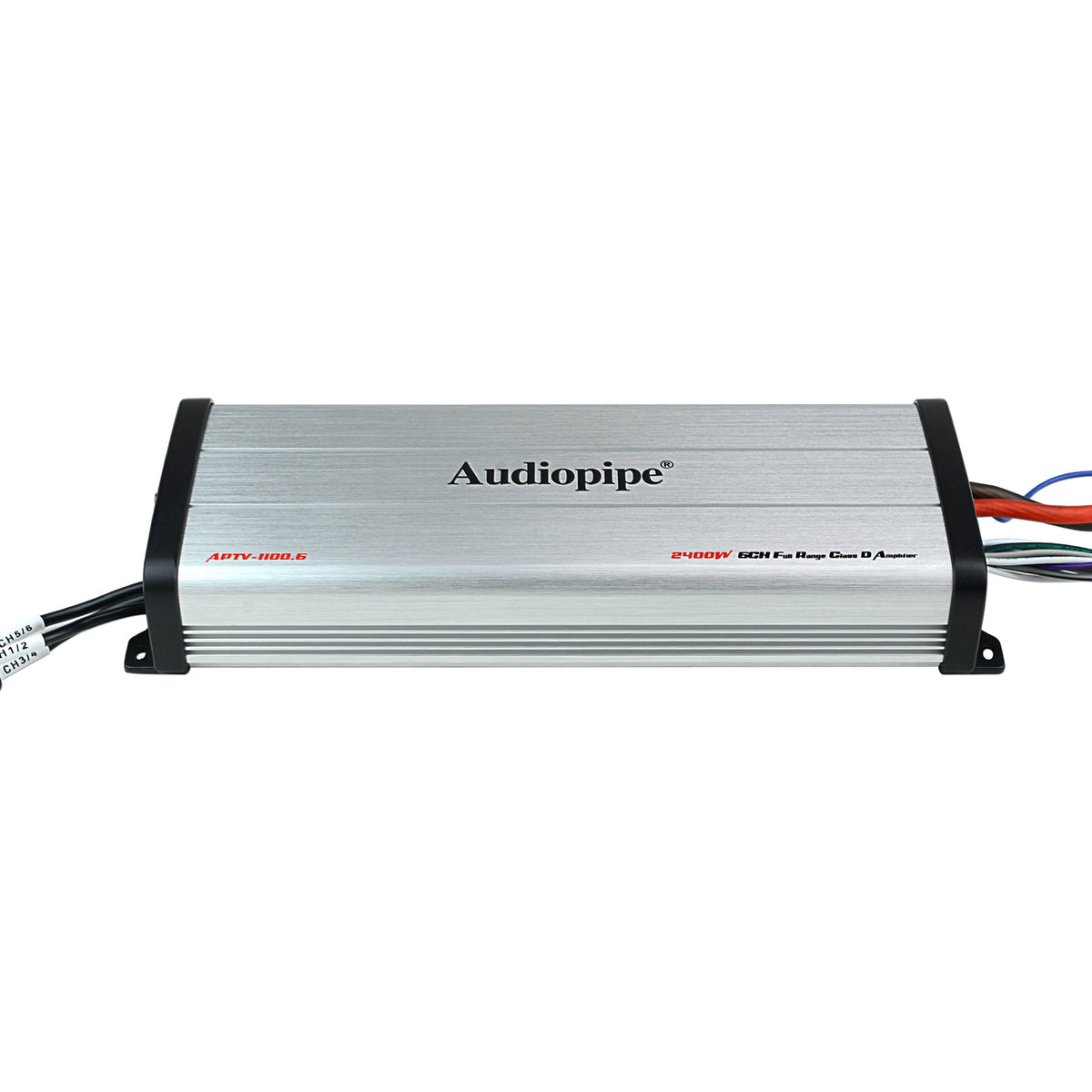

Audiopipe APTV-1100.6 – 6 Channel Full Range Class D Amplifier

🔊 Audiopipe APTV-1100.6 – 6 Channel Full Range Class D Amplifier

Power your entire speaker setup with the Audiopipe APTV-1100.6, a high-performance 6-channel full-range Class D amplifier engineered to deliver strong, efficient output for multi-speaker systems 🚗💥

This amplifier provides the flexibility to run multiple mids and highs while maintaining clean sound and reliable performance. Its compact design and IP67 waterproof rating make it perfect for automotive, marine, and powersports audio installations.

👉 More channels. More flexibility. More sound.

⭐ Key Benefits

⚡ 6 Channel Amplification
Perfect for running multiple speakers in door builds or custom installations.

🔊 Full Range Performance
Designed to power midrange drivers, coaxial speakers, and tweeters with clean output.

💪 Efficient Class D Technology
Provides strong performance while reducing heat and power consumption.

🌊 IP67 Waterproof Rating
Built to resist dust and water — ideal for harsh environments or marine applications.

🎚 Flexible Crossover Controls
Adjust high-pass and low-pass filters to perfectly tune your system.

⚡ Power Output (RMS @ 14.4V, 1% THD, 1kHz)

🔊 6 x 100W RMS @ 4 Ohms (Stereo)
🔊 6 x 160W RMS @ 2 Ohms (Stereo)
💥 3 x 320W RMS @ 2 Ohms (Mono Bridged)

Total system flexibility for mids, highs, or bridged configurations.

🎛️ Performance Specifications

✔ Frequency Response: 12Hz – 40kHz
✔ Signal-to-Noise Ratio: > 85dB
✔ Input Sensitivity: 0.25V – 10V
✔ Working Voltage: 10V – 16V

Clean signal and wide frequency coverage for accurate sound reproduction.

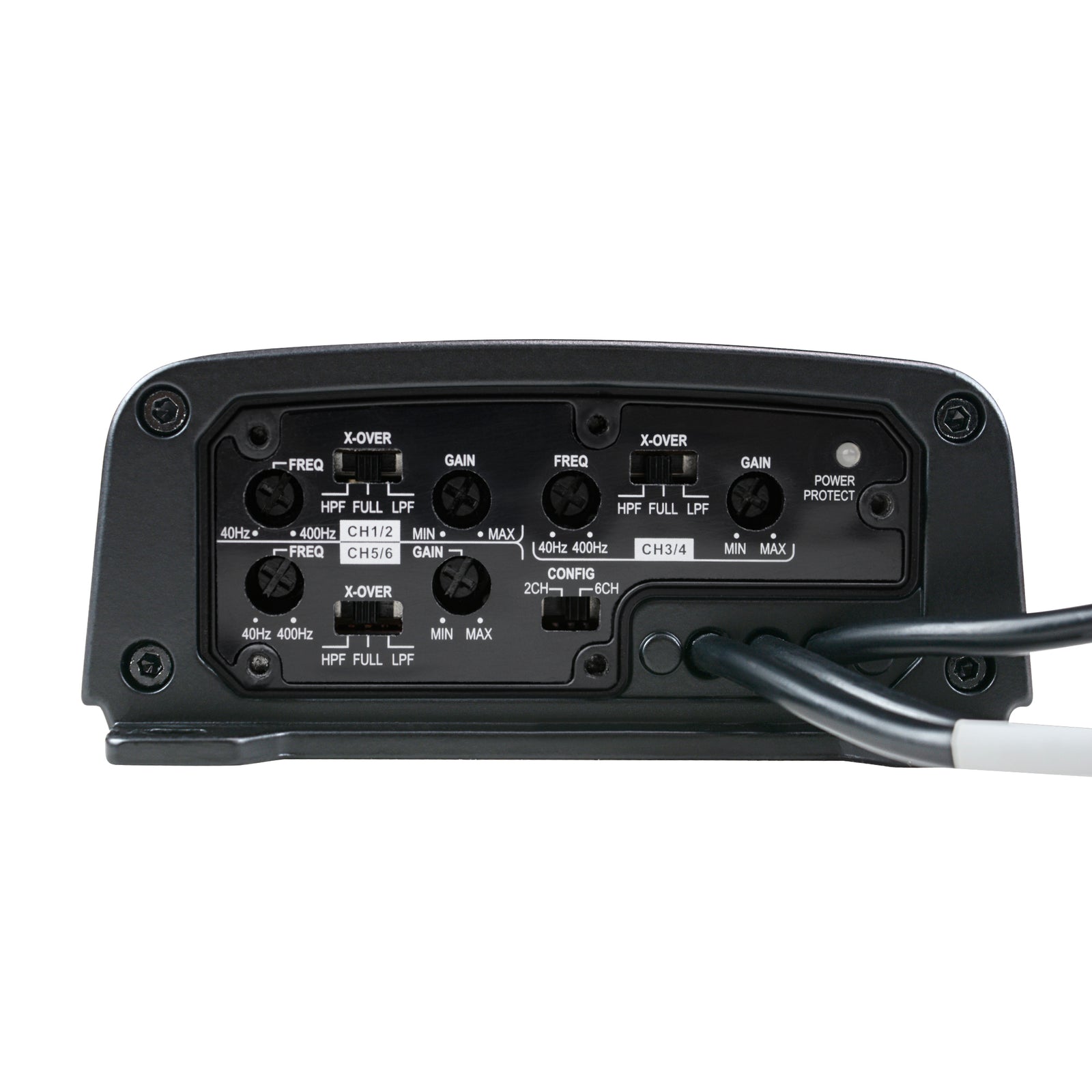

🎚️ Built-In Crossovers

✔ High Pass Filter: 40Hz – 400Hz
✔ Low Pass Filter: 40Hz – 400Hz
✔ Slope: 12dB / Octave

Allows precise tuning for midrange and full-range speaker setups.

🚘 Ideal For

✅ Multi-speaker door builds
✅ Midrange and tweeter systems
✅ Marine audio installations
✅ Powersports vehicles
✅ High-output car audio systems

💡 Why Choose the APTV-1100.6?

If your build includes multiple speakers and requires efficient power distribution, this 6-channel amplifier simplifies installation while delivering serious output.

👉 More speakers. Cleaner install. Stronger sound.
