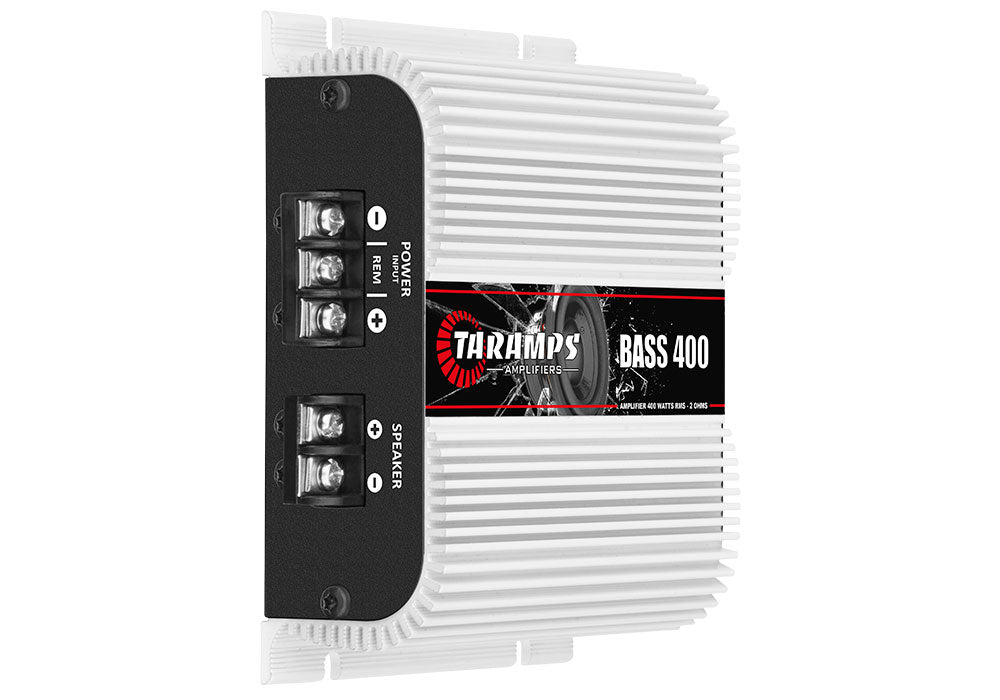

Amplificador Taramps 400 BASS 2ohm
| OPERATION CLASS |
Class D |
| MINIMUM OUTPUT IMPEDANCE |
2 Ohms |
| NUMBER OF CHANNELS |
01 |
| MAXIMUM POWER |
@ 13.8 VDC - 2 Ohms: 400 Watts RMS
@ 13.8 VDC - 4 Ohms: 214 Watts RMS |
| INPUT SENSITIVITY |
320mV (RCA) - 6V (FIO) - LEVEL 100% |
| SIGNAL TO NOISE RATIO |
> 90dB |
| FREQUENCY RESPONSE |
8Hz ~ 250Hz (-3dB) |
| CROSSOVER HIGH PASS (HPF) |
8Hz ~ 30Hz (-12dB/8ª) Variable |
| CROSSOVER LOW PASS (LPF) |
55Hz ~ 250Hz (-12dB/8ª) Variable |
| BASS BOOST |
Parametric, Freq.: 35Hz ~ 55Hz / Boost: 0 ~ +12dB |
| EFFICIENCY |
82% |
| INPUT IMPEDANCE |
10K Ohms (RCA) / 1K Ohms (WIRE) |
| PROTECTION SYSTEM |
Thermal Protection and Output Short Circuit |
| MINIMUM SUPPLY VOLTAGE |
8 VDC |
| MAXIMUM SUPPLY VOLTAGE |
16 VDC |
| CONSUMPTION AT REST |
0.5A |
| MAXIMUM MUSIC CONSUMPTION |
@13.8 VDC - 17.5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
35A |
| DIMENSIONS (WXHXD) |
5.28" x 1.57" x 5.43" (134 x 40 x 138mm) |
| WEIGHT |
1.25lb (0,57kg) |
