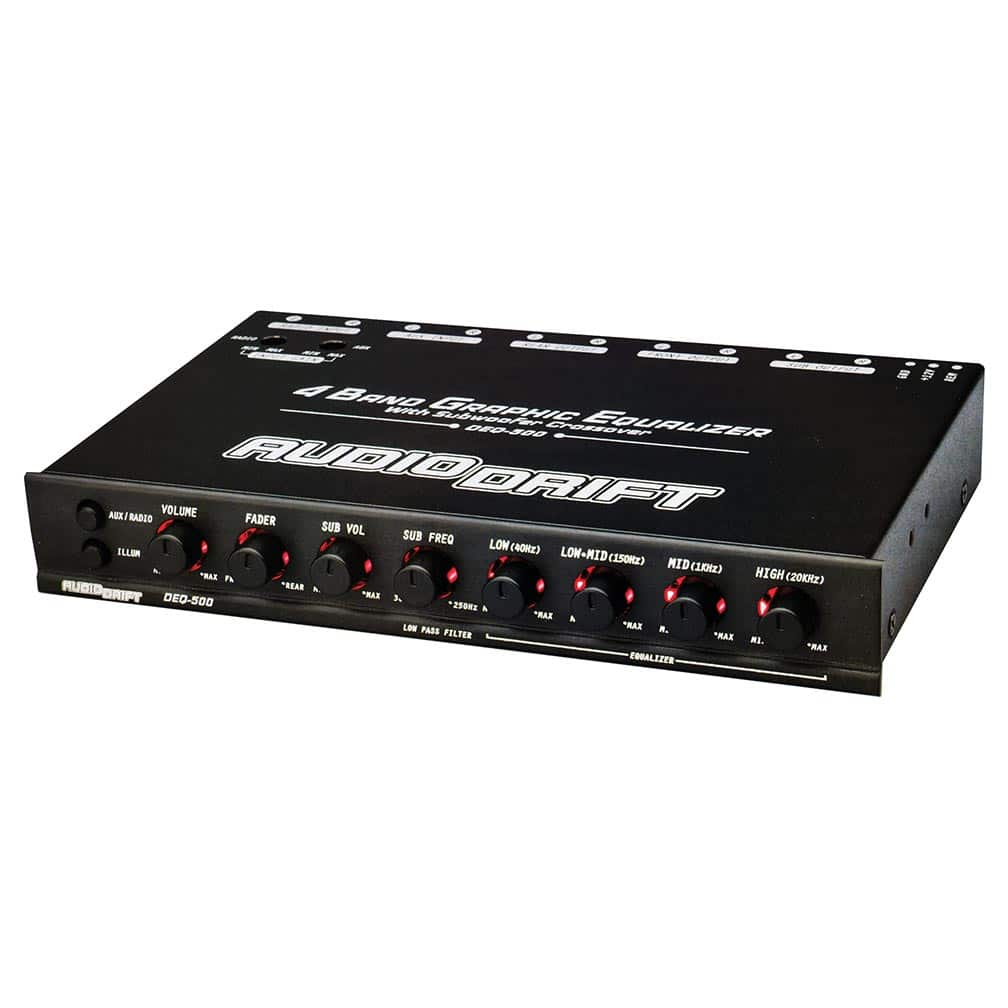

Equalizer 4 Bandas Audio Drift DEQ-500

Preamp Audio Drift Equalizer DEQ-500

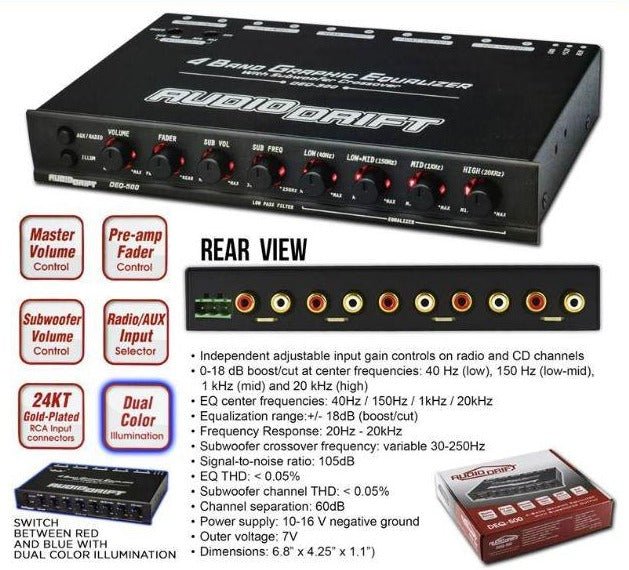

Specifications:

• 4-Band Graphic Equalizer with Subwoofer Output
• Independent Adjustable Input Gain Controls on Radio and CD Channels
• 0-18 dB Boost/Cut at Center Frequencies: 40 Hz (low), 150 Hz (low-mid), 1 kHz (mid) and 20 kHz (high)
• EQ center frequencies: 40Hz • 150Hz • 1kHz • 20kHz
• Equalization range: +/- 18dB (boost/cut)
• Frequency response: 20Hz-20kHz
• Subwoofer crossover frequency: variable 30-250Hz
• Signal-to-Noise Ratio: 105dB
• EQ THD: < 0.05%
• Subwoofer channel THD: < 0.05%
• Channel separation: 60dB
• Power supply: 10-16V negative ground
• Output voltage: 7V
• Dimensions (W x D x H): 173 x 108 x 28mm (6.8” x 4.25” x 1.1”)
