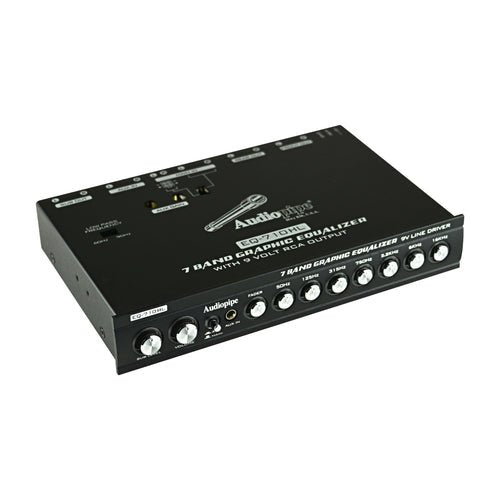

🎛️ Audiopipe EQ-710HL – 7 Band Car Audio Equalizer with Subwoofer Control Hi-Low BTL
Take full control of your system with the Audiopipe EQ-710HL, a powerful 7-band graphic equalizer designed to improve sound clarity, boost signal strength, and give you complete tuning control over your audio system 🚗🔊
With high and low level inputs, strong 9V preamp output, and precise frequency adjustment, this equalizer is perfect for both factory radio upgrades and aftermarket systems.
👉 More control. More signal. Better sound.
⭐ Key Features
🎚 7-Band Graphic Equalizer
Fine-tune your system by boosting or cutting specific frequencies for the perfect sound balance.
🔊 9V High Output Preamp
Provides a strong clean signal to amplifiers for louder and clearer sound.
⚡ 20dB Headroom Output Control
Allows powerful signal adjustment without distortion.
🎛 Subwoofer Level Control
Quickly adjust your bass level directly from the equalizer.

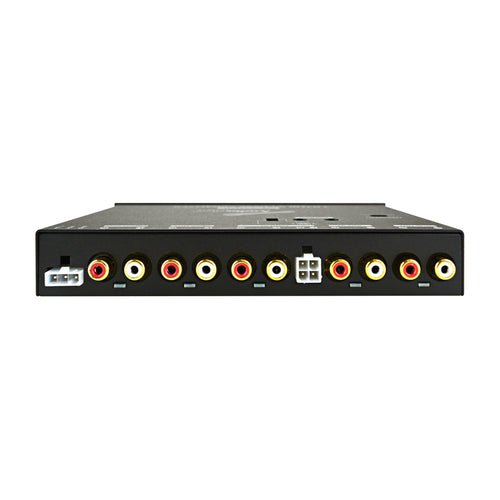

🎚 Front / Rear / Sub Outputs
Perfect for systems with multiple amplifiers.
🎛️ Advanced Control Features
✔ Nickel plated locking adjustable knobs
✔ Fader, volume, and subwoofer controls
✔ Adjustable gain pre-amplifiers
✔ Individual left/right auxiliary sensitivity controls
✔ Main / Auxiliary input selector
✔ 3.5mm front audio input for quick device connection
✔ Gold-plated RCA connectors for clean signal transfer
🛠️ Installation & Design
✔ Universal Half-DIN Chassis
Fits easily into most vehicle dashboards or custom panels.
✔ High / Low Level Inputs
Compatible with factory radios and aftermarket head units.
Built for flexible and professional installations.
⚙️ Technical Specifications

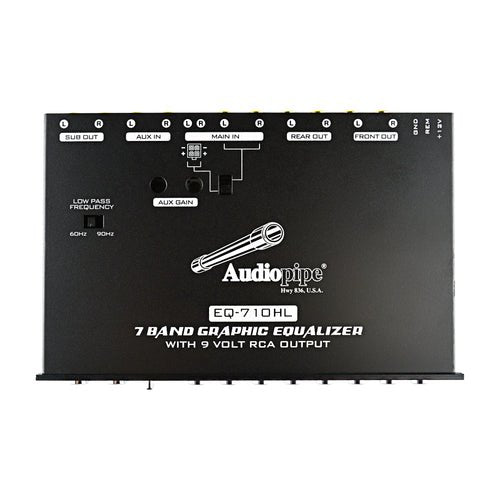

🔹 Preamp Outputs: Front / Rear / Sub
🔹 Center Frequencies: 50Hz / 125Hz / 315Hz / 750Hz / 2.2kHz / 6kHz / 16kHz
🔹 Boost / Cut: ±12dB
🔹 Subwoofer Crossover: 60Hz / 90Hz
🔹 Adjustable Sub Frequency: 60Hz / 90Hz
🔹 Frequency Response: 10Hz – 50kHz ±1dB
🔹 Signal-to-Noise Ratio: 100dB
🔹 Maximum Output Voltage: 9V
🔹 THD: 0.005%
🔹 Input Sensitivity: 50mV – 3V
Clean signal performance and precision tuning for serious audio setups.
🚘 Ideal For
✅ Systems with multiple amplifiers
✅ Factory radio upgrades
✅ Subwoofer control setups
✅ Voceteo and SPL builds
✅ Custom car audio installations
💡 Why Add an Equalizer?
Even the best speakers and amplifiers need proper tuning.
The EQ-710HL allows you to balance frequencies, boost signal strength, and control bass on the fly.
👉 Better tuning = better sound.
