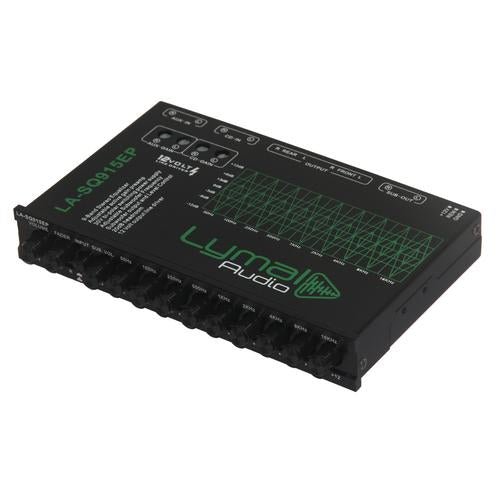

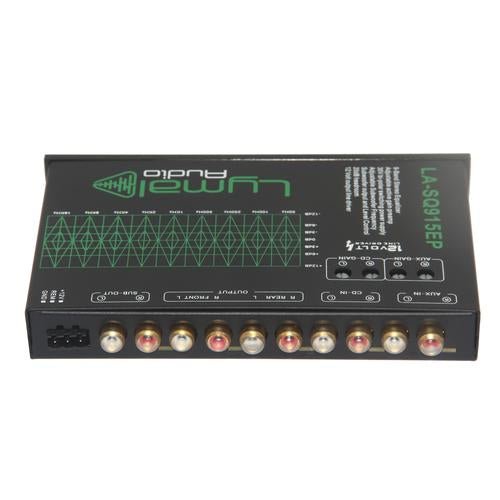

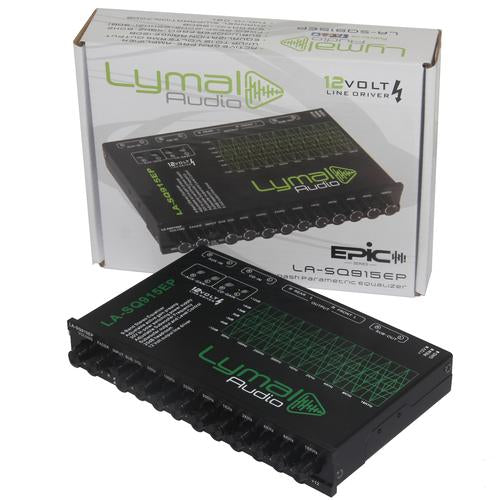

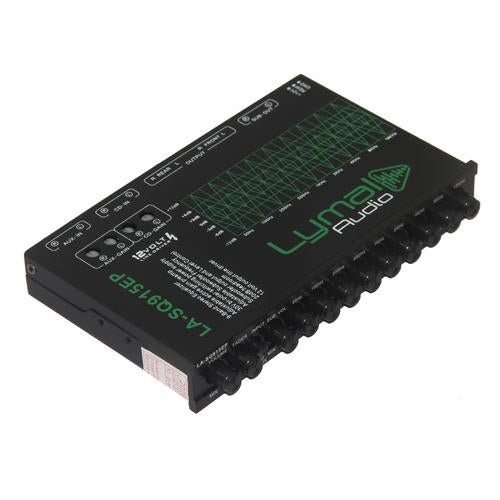

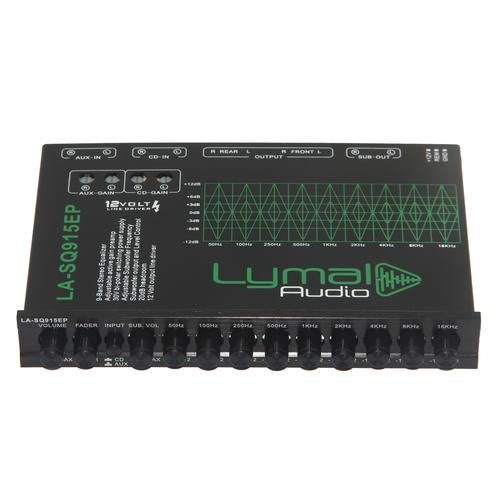

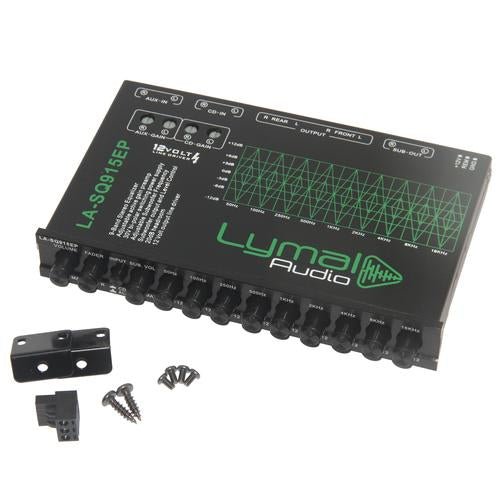

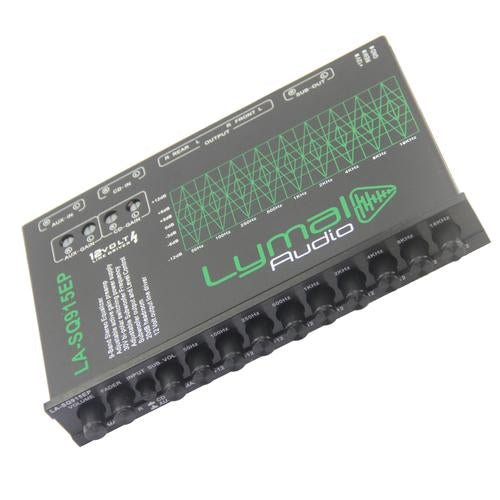

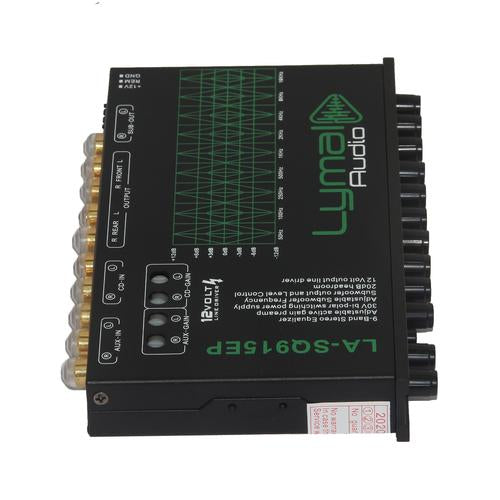

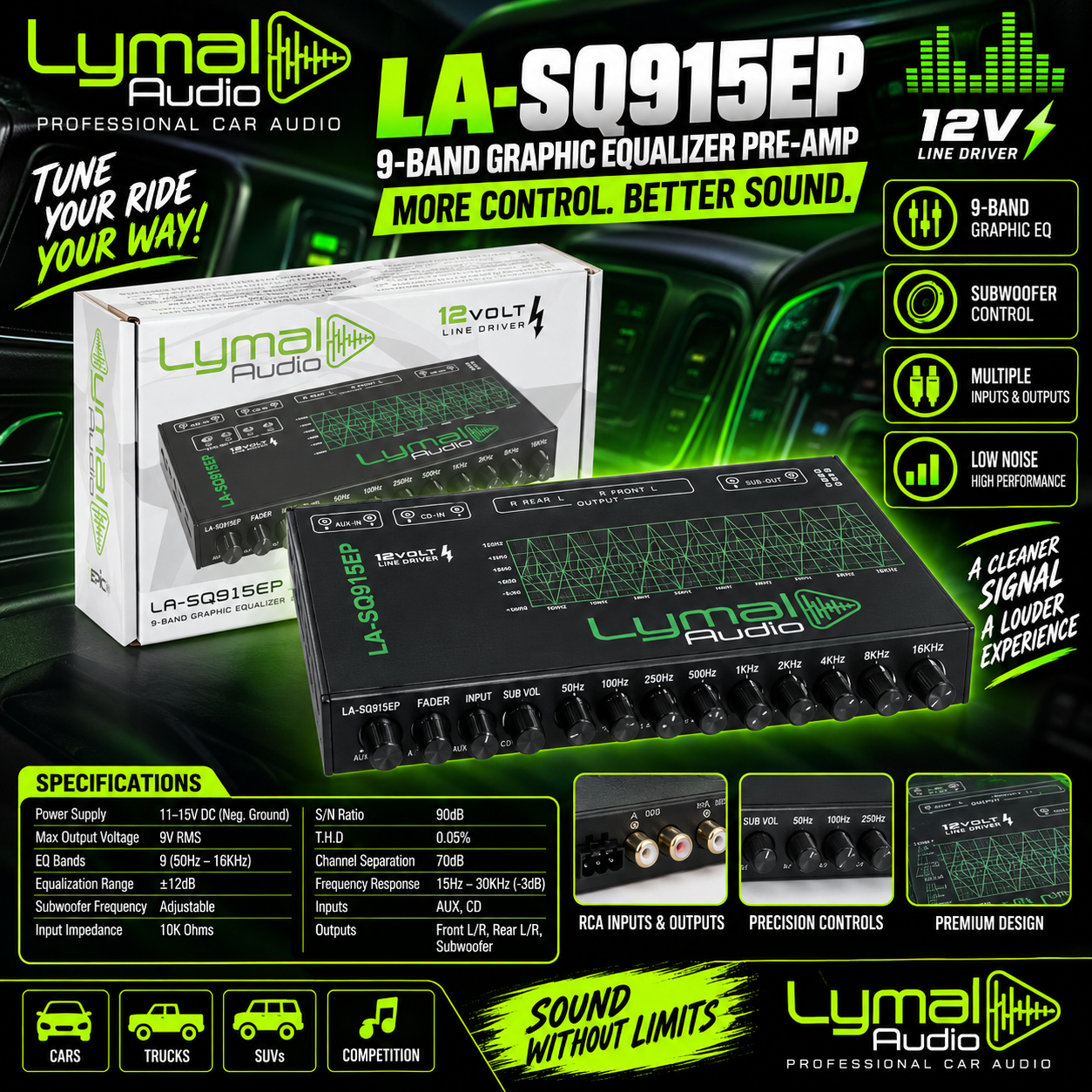

Pre-Amp Lymal Audio 9 Band 12 Volt Car Audio Graphic Equalizer Sub/Level Control LA-SQ915EP
Epic Series 9 Band Graphic Equalizer
Specifications:
1/2 DIN, 9 Band Graphic Equalizer
Gold Plated RCA Connectors
Frequency Response: 20Hz ~ 22KHz (-3dB)
Subwoofer Output Built-In 18dB per Octave electronic X-Over fixed @43Hz or 60Hz
S/N Ratio: >98db
Channel Separation: 70db
12 Volt Output Line Driver
RCA Auxiliary Input (Rear) inputs for MP3, DVD, or Phone
6-Channel / 12 Volt RCA Outputs (Front/Rear/Subwoofer)
Separate Controls for Master, Sub, Volume (Sub level) Front / Rear, Fader, Main or AUX Inputs
9 equalization bands (50Hz, 120Hz, 250Hz, 500Hz,1kHz, 2kHz, 4kHz, 8kHz, 16kHz), each frequency is adjustable from -12 to + 12dB.
THD: 0.02%
