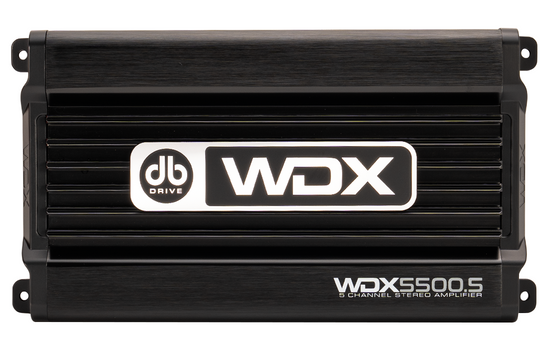

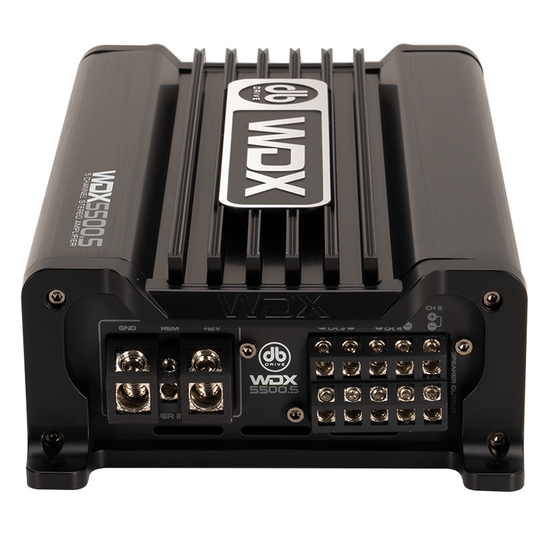

🔥 DB Drive WDX5500.5 – 5 Channel Full Car Audio Amplifier 🔥
Power your entire system from one serious amplifier.
The DB Drive WDX5500.5 is a high-performance 5-channel amplifier designed to run your mids, highs, and subwoofer from a single chassis — delivering clean, aggressive power with professional tuning flexibility 💥
Manufactured by DB Drive, this amp is built for real-world builds that demand strength, reliability, and full-system performance.
👉 One amp. Complete control. Big output.
⚡ Rated Power @ 14.4V
🔊 Speaker Channels (Front & Rear)
✔ 4 x 200 Watts @ 4Ω
✔ 4 x 400 Watts @ 2Ω
💥 Subwoofer Channel
✔ 500 Watts @ 2Ω
Perfect balance of mids, highs, and bass from a single amplifier.
🎛️ Performance & Audio Parameters
🔹 Frequency Response: 20Hz ~ 22KHz
🔹 Signal-to-Noise Ratio: < 105 dB
🔹 Low-Level Input Sensitivity: 6V – 0.2V
🔹 Working Voltage: 12 – 15 Volts
Clean signal. Strong output. Professional-grade tuning capability.

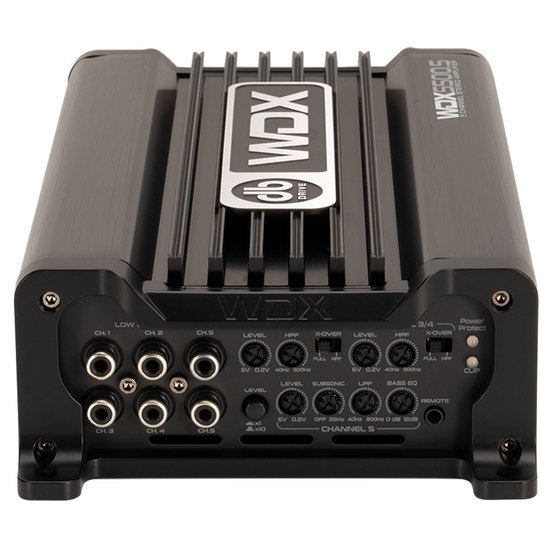

🎚️ Advanced Crossover & Sound Control
✔ Independent Selectable X-Over (Front/Rear): HPF / LPF / FULL
✔ Variable High Pass Filter (12dB slope): 40Hz ~ 300Hz
✔ Variable Low Pass Filter (12dB slope): 40Hz ~ 300Hz
✔ Variable Subsonic Filter (12dB slope)
✔ Bass Equalizer: 0dB – 12dB
👉 Full flexibility to tune mids, highs, and sub exactly how your system needs.
💥 Why This Amp Is a Smart Choice
✔ Runs entire system from one chassis
✔ Strong dedicated sub channel
✔ Powerful 2Ω capability
✔ Clean install (less wiring, less space)
✔ Ideal for daily drivers or strong street builds
This is perfect for customers who want:
🔊 Loud mids
🎶 Clear highs
💥 Strong bass
Without stacking multiple amplifiers.
🚗 Ideal For
✅ Full system upgrades
✅ Single subwoofer setups
✅ Clean trunk builds
✅ Customers wanting simplicity + power
✅ The Outlet Station combo packages
