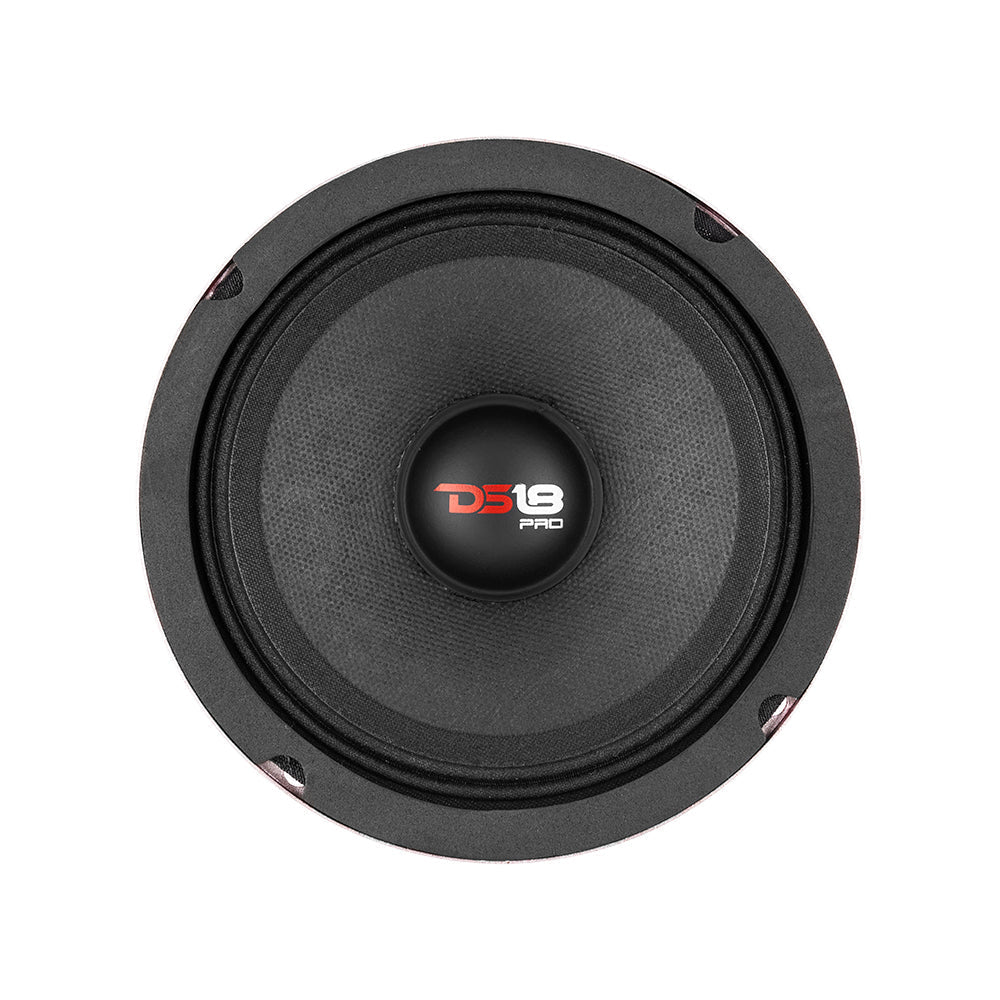

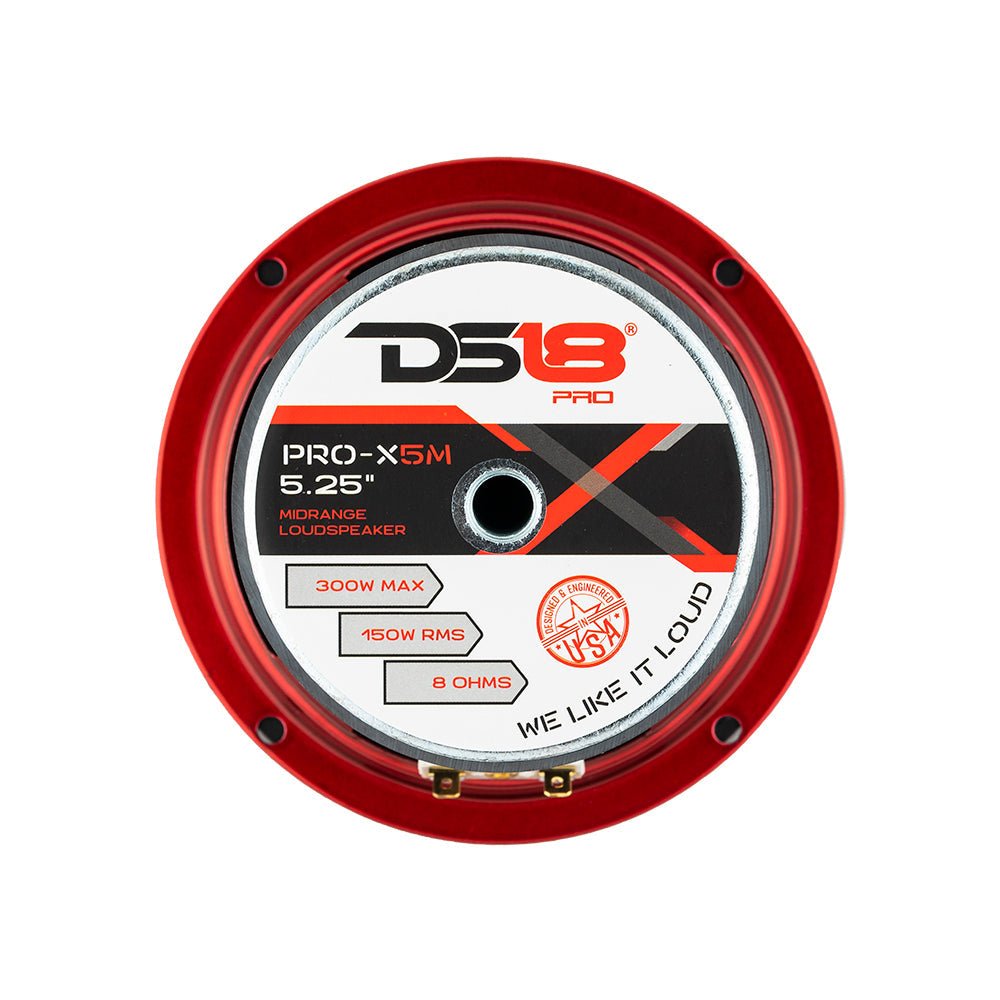

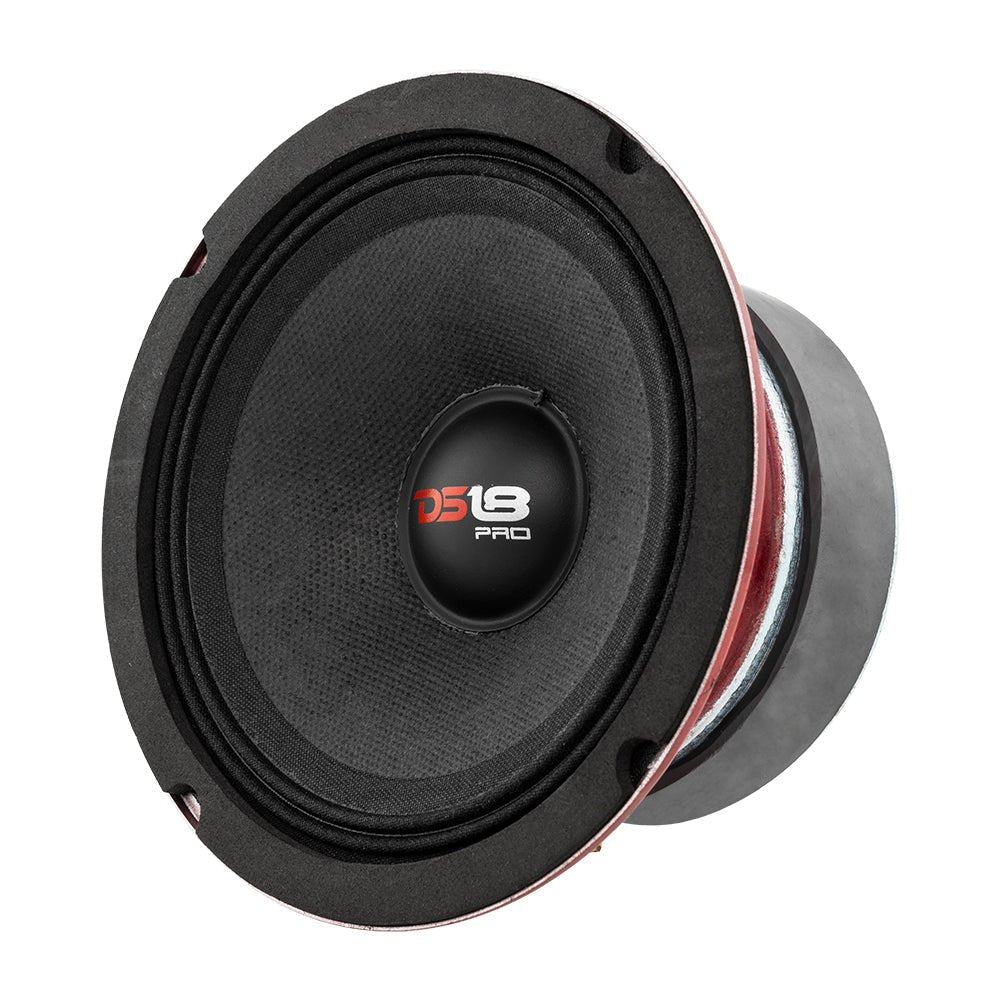

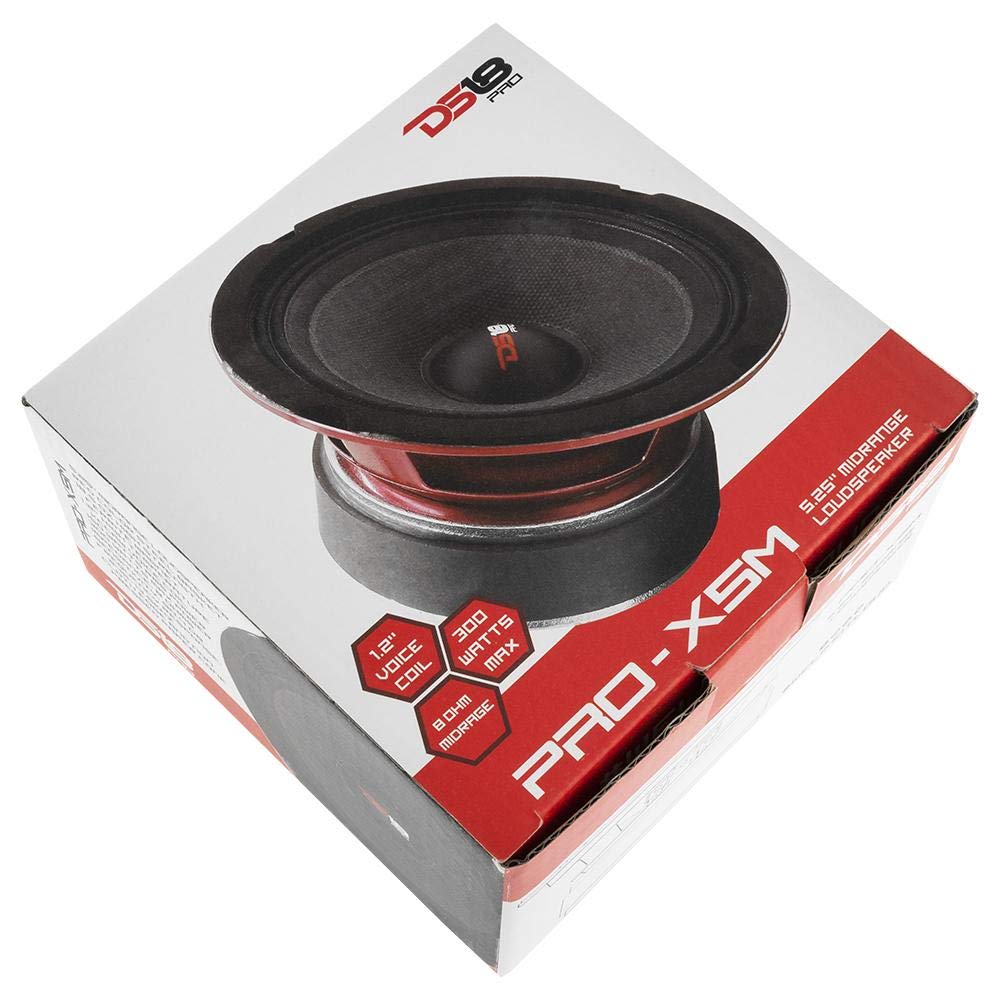

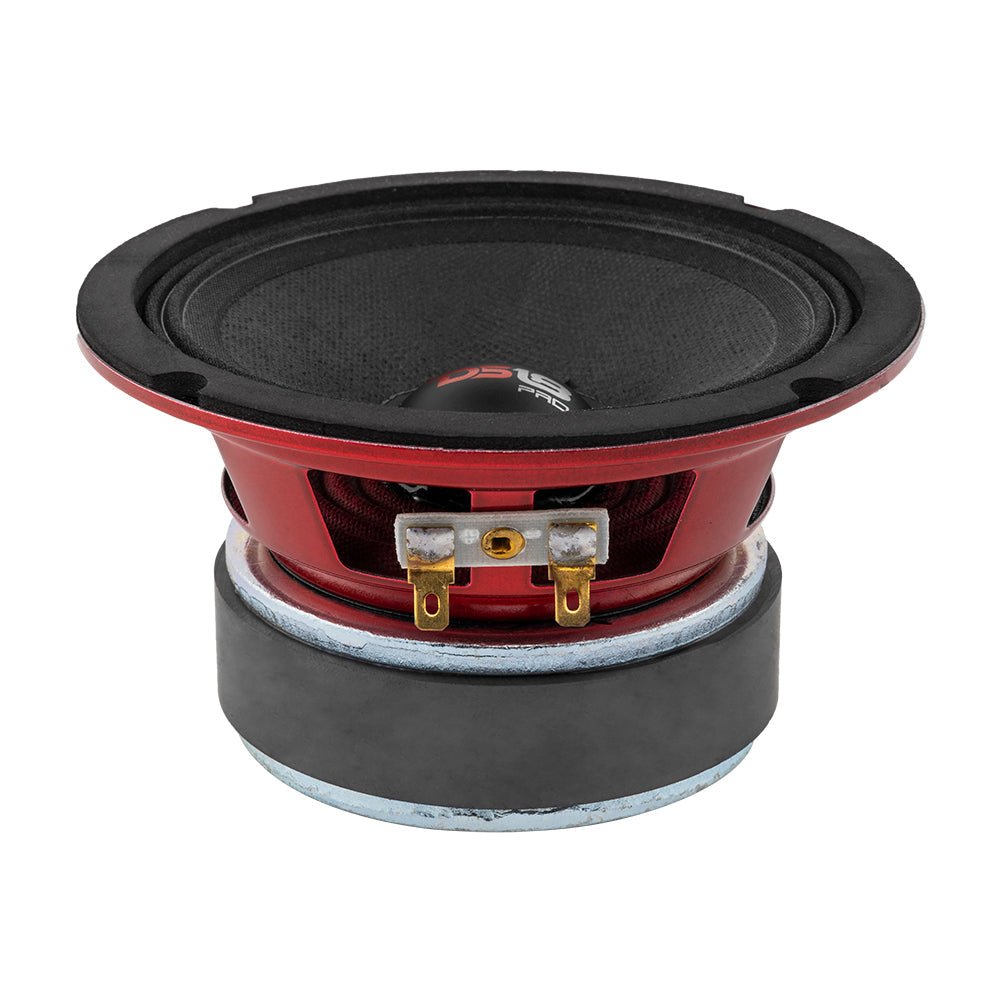

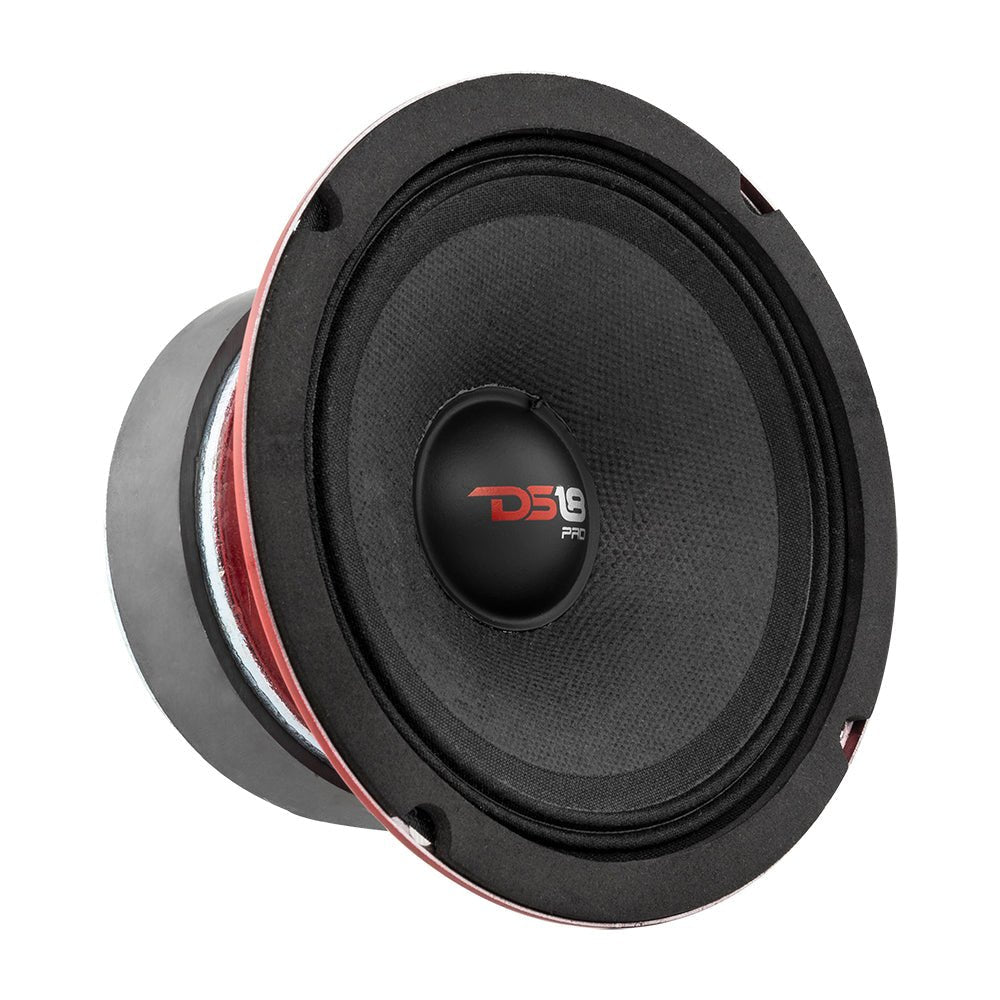

DS18 PRO-X5M 5.25" Mid-Range Loudspeaker 300 Watts 8-Ohm
| Model: |
PRO-X5M |
| Type: |
Midrange Loudspeaker |
| Size: |
5.25" |
| RMS Power: |
150W |
| MAX Power: |
300W |
| Frequency Response: |
245Hz - 13.5 KHz |
| Impedance: |
8 Ohms |
| Sensitivity: |
90dB |
| Materials |
|
| Surround: |
Cloth Edge |
| Frame: |
Red Steel Basket |
| Cone: |
Paper |
| Magnet: |
Ferrite |
| Voice Coil Wire: |
KCCAW |
| Diameters |
|
| Voice Coil Size: |
1.2" |
| Magnet Size: |
18.5 oz. |
| Mounting Depth: |
2.6" (66mm) |
| Cut-Out Dimension: |
4.33" (110mm) |
