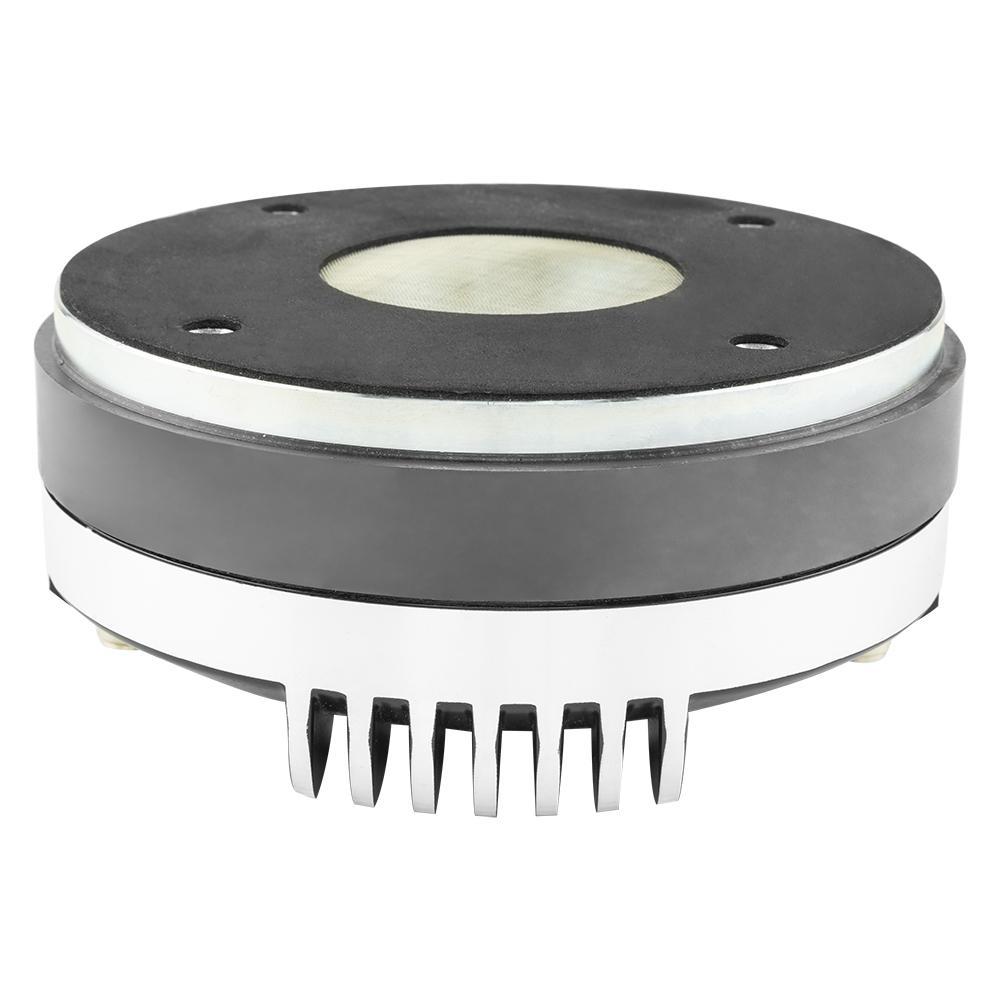

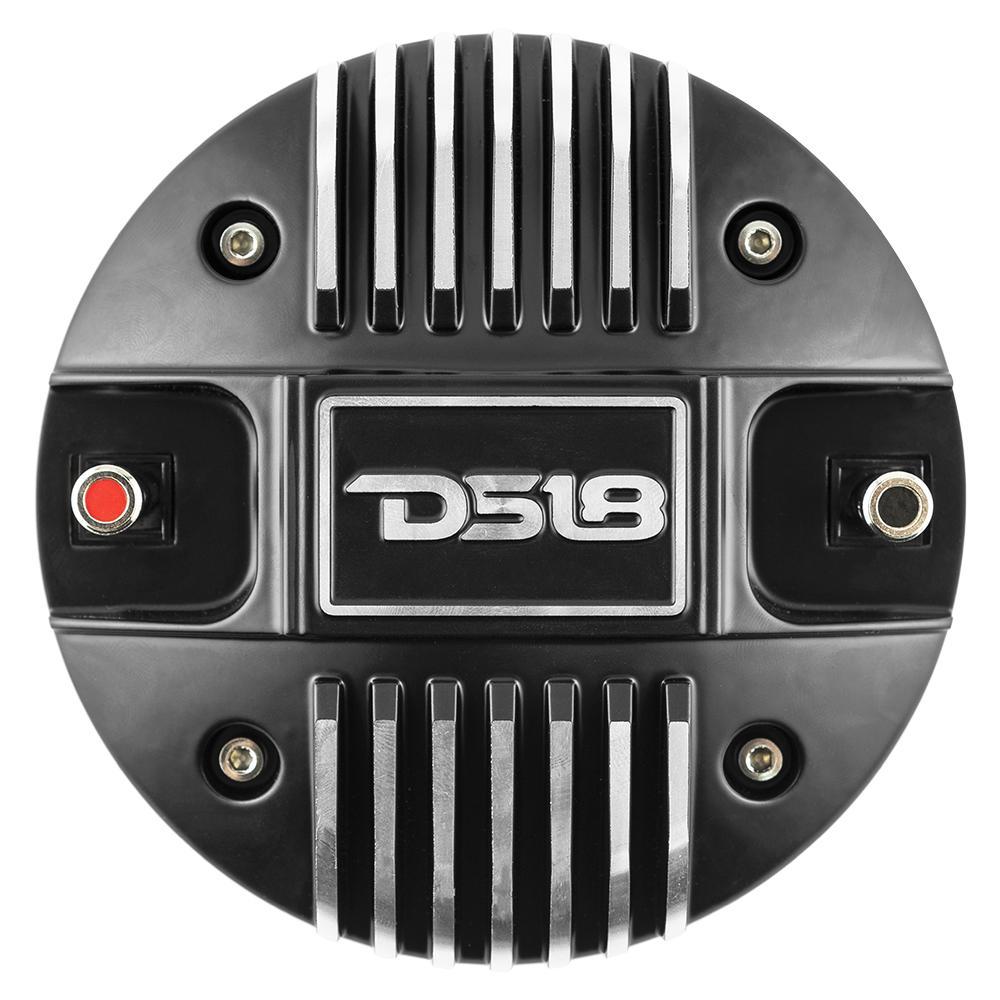

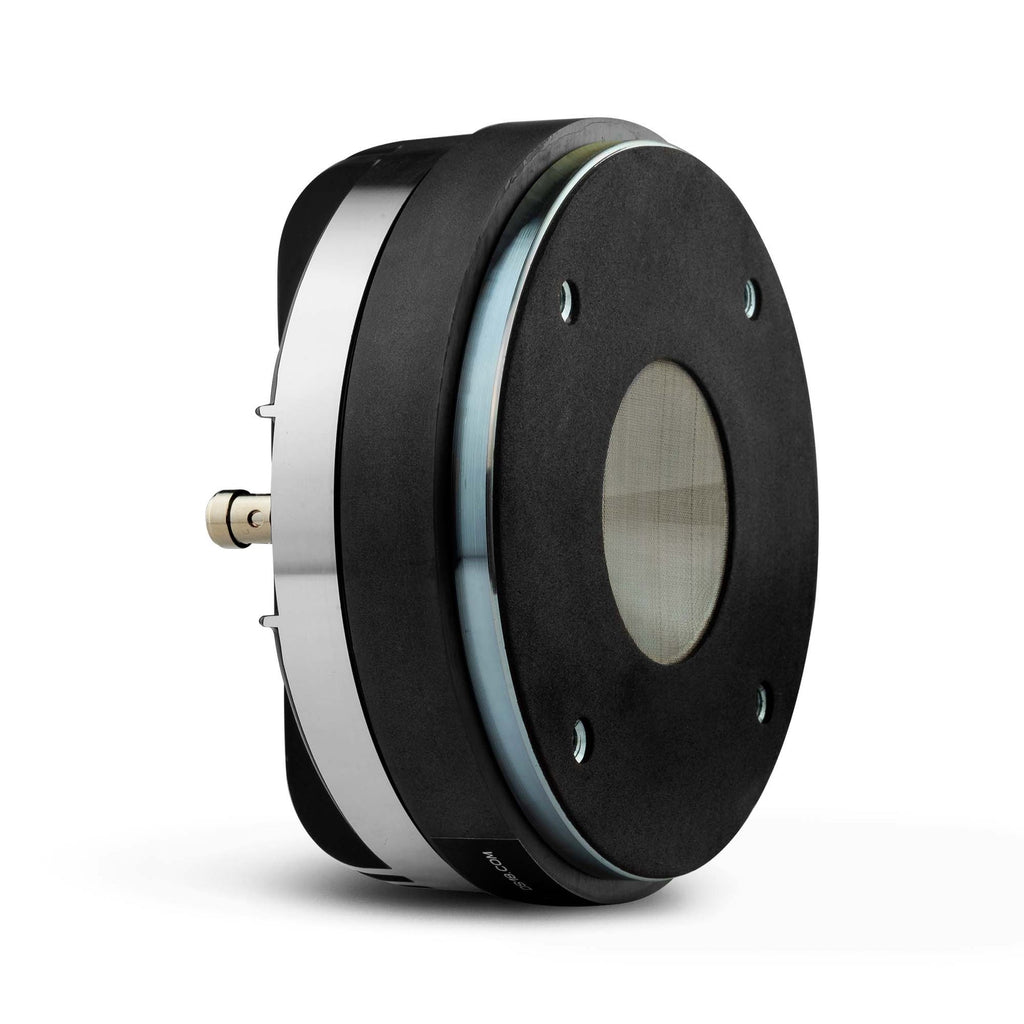

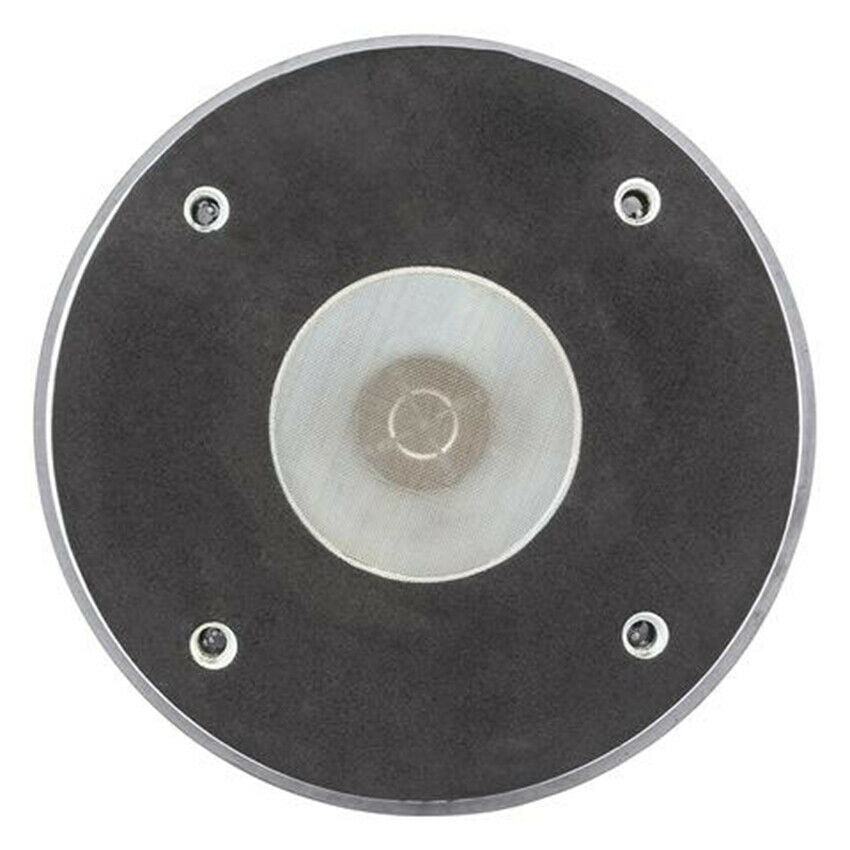

DS18 PRO-D1 2" Throat Bolt On Compression Driver 2" Throat Titanium Voice Coil 640 Watts 8-ohm
| Throat Diameter |
2" |
| Installation Type |
Bolt-on |
| Nominal Impedance |
8 ohms |
| Peak Power Handling |
640W |
| Program Power Handling |
320W |
| AES Power |
160W |
| Diaphragm Material |
Titanium
|
| Sensitivity (1w/1m) |
100dB |
| Frequency Response |
630Hz-20KHz |
| Recommended Hi Pass Crossover |
800Hz |
| MOTOR |
|
| Voice Coil Diameter |
2.03" |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCA |
| Diaphragm Material |
Titanium |
| Magnet Material |
Ferrite |
| Magnet Weight |
35 oz |
| Measurements |
|
| Overall Diameter |
5.27" |
| Overall Depth |
2.4" |
