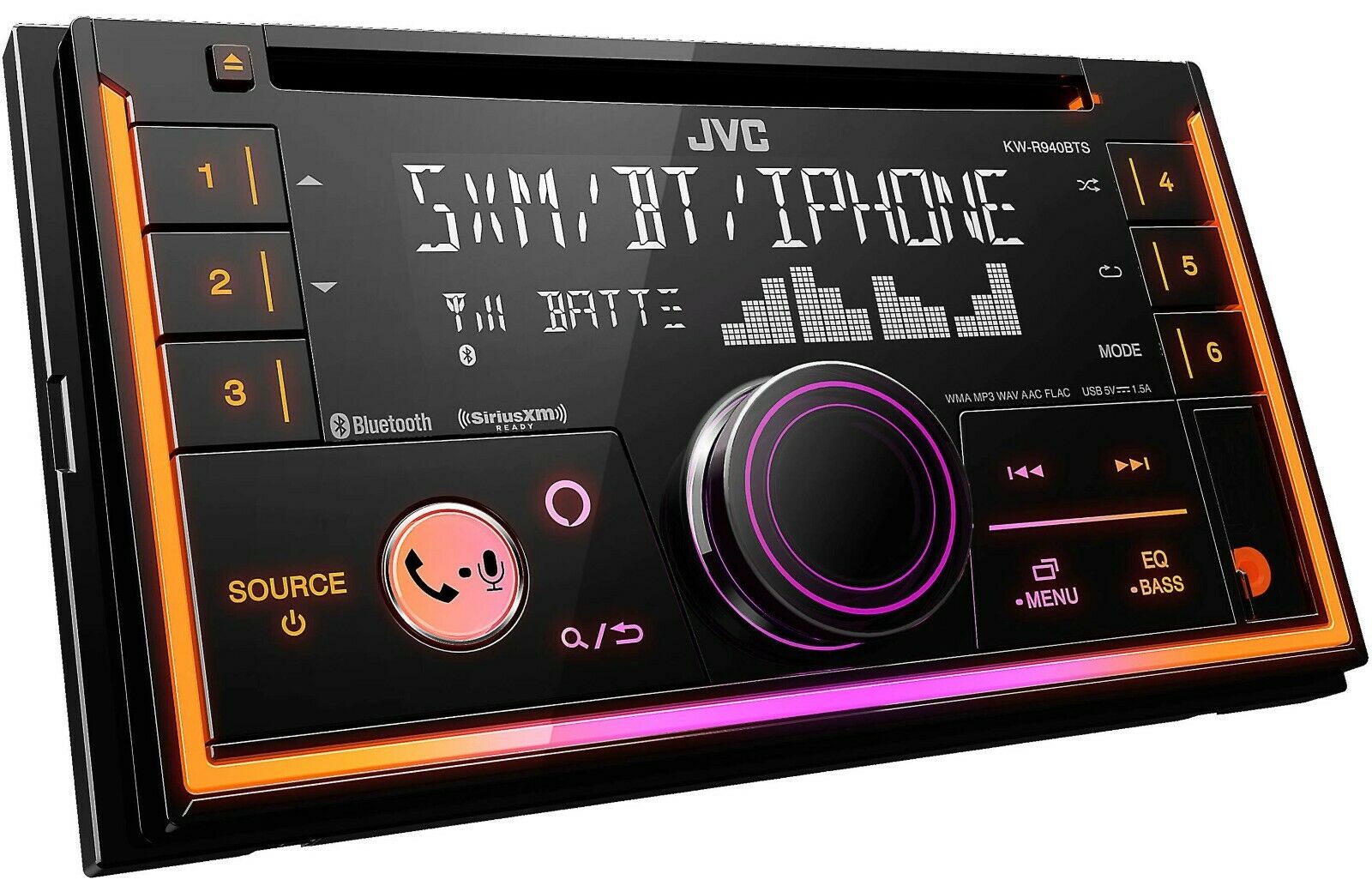

Radio JVC CD Bluetooth KW-R940BTS

Display

• 2-Line VA LCD Display
  Equipped with VA (Vertical Alignment) LCD panels that offer a broader angle of view and better visibility. The 2-line display provides more information with animation effects.
• 2-Zone Variable-Color Illumination
  You can mix the front panel illumination, separated into 2 zones. 50 preset patterns (49 colors + 1 user color preset) are available for easy customization. In addition, manual setting is possible to set each RGB color by 32 steps, providing a total of 32,768 different colors for each zone, 1 and 2, to match your preferences. You can even enjoy moving illumination, selectable from 10 color animation patters.
• Spanish Text Display Compatible
  On-screen display menu now available in Spanish. Helpful for more users.

Bluetooth

• 2 Phones Full-Time Connection
  You can connect two phones full time via Bluetooth, with secure and simple pairing. Calls to either phone can be received by a push of a key on the head unit.
• Bluetooth AVRCP1.5 for Versatile Song Selection
  In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.
• Bluetooth Hands-Free Profile 1.6
  HPF 1.6 Wideband Speech is supported, so you can now enjoy hands-free phoning convenience together with higher voice quality and improved noise reduction.
• iPhone®/Android™ Bluetooth Automatic Pairing
  Just connect your iPhone or Android device* via USB and the automatic Bluetooth pairing function will work to complete the pairing. No complicated manual procedure to worry about. *JVC Music Play application is required for Android.
• JVC Streaming DJ
  Connect up to 5 Bluetooth devices simultaneously, so you and your friends can take turns streaming music like a DJ. Move to the groove and get the party pumping to the max.

Sound Optimization

• K2 Technology for Enhanced Digital Sound Quality
  K2 is a JVCKENWOOD's original technology that reproduces the original master sound by expanding the bit rate and frequency range. K2 is compatible with all sources including CD. For example, K2 will expand the digital data of the audio CD recorded at 44.1kHz/16 bit to 48 kHz/24 bit, and recreate the high-frequency range above 20kHz that is cut during the CD formatting.
• Time Alignment
  By selecting the speaker type and the distance to the centre of the listening position, the head unit will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.
• Space Enhancement
  Space Enhancement is a virtual surround technology using 2 speakers. Just select the vehicle size, and the head unit automatically adjusts the sound effectively.
• Sound Response
  This function boosts the low frequencies which can be lost during compression to MP3 or AAC.
• Sound Lift
  Virtually manipulate the height of the speakers by adjusting the sound frequencies.
• Volume Link EQ
  Volume Link EQ boosts specific frequencies in the audio signal to compensate for the impact of road noise. It boosts frequencies in the music that are affected by road noise.
• 13-Band Equalizer
  Use the 13-Band Equalizer to manually adjust the sound to your taste.

Internet Radio/Digital Radio

• Pandora / iHeartRadio / Spotify Control (Android/iPhone)
  Listen to Pandora, iHeartRadio, and Spotify from your smartphone with smooth control on the headunit via USB or Bluetooth connection for iPhone, and via Bluetooth for Android devices.
• SiriusXM Ready
  Ready for SiriusXM Radio. You can listen to over 100 Channels of music, sports, and entertainment.

Media Playback

• 24bit FLAC Compatible with Tag
  Compatible with FLAC format which allows digital audio to be losslessly compressed, so that file size is reduced without any information being sacrificed. Also compatible with playback of 24bit / 48kHz FLAC format.

Smartphone Integration

• Android™ Music Playback via USB
  (AUTO MODE/AUDIO MODE)
  Simply connect your Android smartphone or tablet to the receiver via USB and enjoy a totally "plug and play" music playback solution. The Android Open Accessory Protocol (AOA2) is supported so absolutely no preparation or set-up is necessary – just plug it in and it's ready to play audio files stored on your Android device in what's called "AUDIO MODE". Or, by installing the free JVC Music Play app* available on Google Play, you'll be able to access "AUTO MODE" for added functionality including Folder Up & Down, and Search Artist/Album/Song.

USB

• High Current 1.5A Charging
  Rapidly charge your smartphone using the USB port, with up to a maximum of 1.5A.

General

• Remote Control App
  Control the receiver's source directly from the smartphone using simple finger gestures with "JVC Remote" app* now available for both iOS and Android. You can even customize your audio setting, and see detailed source information such as song title, artist name and album art etc. from the smartphone.

Specifications:

Display

• Display Type 2-Line: VA
• LCD Display LCD Color: White
• Key Color Variable: Color
• Spanish Text Display Compatible: Yes
• Auto Dimmer: Yes
• Brightness Control: Yes

Media Playback

• MP3 Compatible with Tag: CD / USB
• WMA Compatible with Tag: CD / USB
• WAV Compatible with Tag: USB
• AAC Compatible with Tag: CD / USB
• FLAC Compatible with Tag: USB ( Up to 96kHz/24bit )

Bluetooth Control

• Built-in Bluetooth[1]: Yes (Ver 3.0, Wired-Mic included)
• Hands Free Call: Yes (HFP 1.6 wideband speech)
• 2 Phones Full-Time Connection: Yes
• Audio Streaming & Control (A2DP, AVRCP): Yes
• 5 BT-Audio Connection [Streaming DJ]: Yes
• Voice Dialing (voice recognition compatible mobile phone required): Yes
• Phone Book Access Profile (PBAP): Yes
• iPhone & Android Automatic Pairing: Yes

Android Control

• Android Music Playback (AUDIO MODE and AUTO MODE)[2]: Yes (AUDIO MODE & AUTO MODE)
• Spotify Control: Yes (via Bluetooth(R))
• Pandora Control (Available in countries that support this service.): Yes (via Bluetooth(R))
• iHeartRadio Control (Available in countries that support this service.): Yes (via Bluetooth(R))

iPod/iPhone Control

• iPod/iPhone Music Playback: Yes
• Spotify Control: Yes (via USB or Bluetooth(R))
• Pandora Control (Available in countries that support this service.):Yes (via USB or Bluetooth(R))
• iHeartRadio Control (Available in countries that support this service.): Yes (via USB or Bluetooth(R))

USB

• Position: Front
• USB Power Supply: Yes (1.5A)
• Drive Change Mode for Mass Storage Class: Yes

Inputs and Outputs

• AUX Input: 1 (Front)
• Line Output Terminals (Pair): 3 Pairs 4V (Front + Rear + Subwoofer)
• Pre-Output Level: 4V
• Subwoofer Output with Level/Frequency Control: Yes (Level -50 - +10)
• Subwoofer Output Level: 4V

Tuner

• SiriusXM Ready: Yes
• Radio Data Broadcast System (RBDS): Yes
• Digital Processing Tuner: Yes
• Preset Stations: 18FM + 6AM
• Strong Station Memory (for FM): Yes
• Radio Timer: Yes (Once/Daily/Weekly)
• Tuner Preset Memory (for power disconnection): Yes
• FM Frequency Range: 87.9 - 107.9MHz (200kHz)
• AM Frequency Range: 530 - 1,700kHz (10kHz)

Audio

• Maximum Power Output: 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
• Full Bandwidth Power (at less than 1%THD): 22W x 4
• MOS-FET Amplifier: Yes
• Subwoofer Direct Connection (Mono Lch): Yes
• EQ: Yes (13-Band Graphic EQ)
• Preset EQ: Yes (11-Preset)
• Bass Boost: Yes
• Loudness Control: Yes (Off/Low/High)
• High-Pass Filter/Low-Pass Filter: Yes/Yes
• K2 Technology: Yes
• Time Alignment: Yes
• Space Enhancement: Yes
• Sound Response: Yes
• Sound Lift: Yes
• Volume Link EQ: Yes
• drvnEQ: Yes

General

• Back Up Memory: Yes
• Steering Remote Control Ready: Yes
• Remote Control Application: Yes

Approximate Dimensions:

• Height: 3.94"
• Width: 7.06"
• Depth: 6.25"

Approximate Weight:

• Unit: 2.87 lbs
• Shipping: 4 lbs
