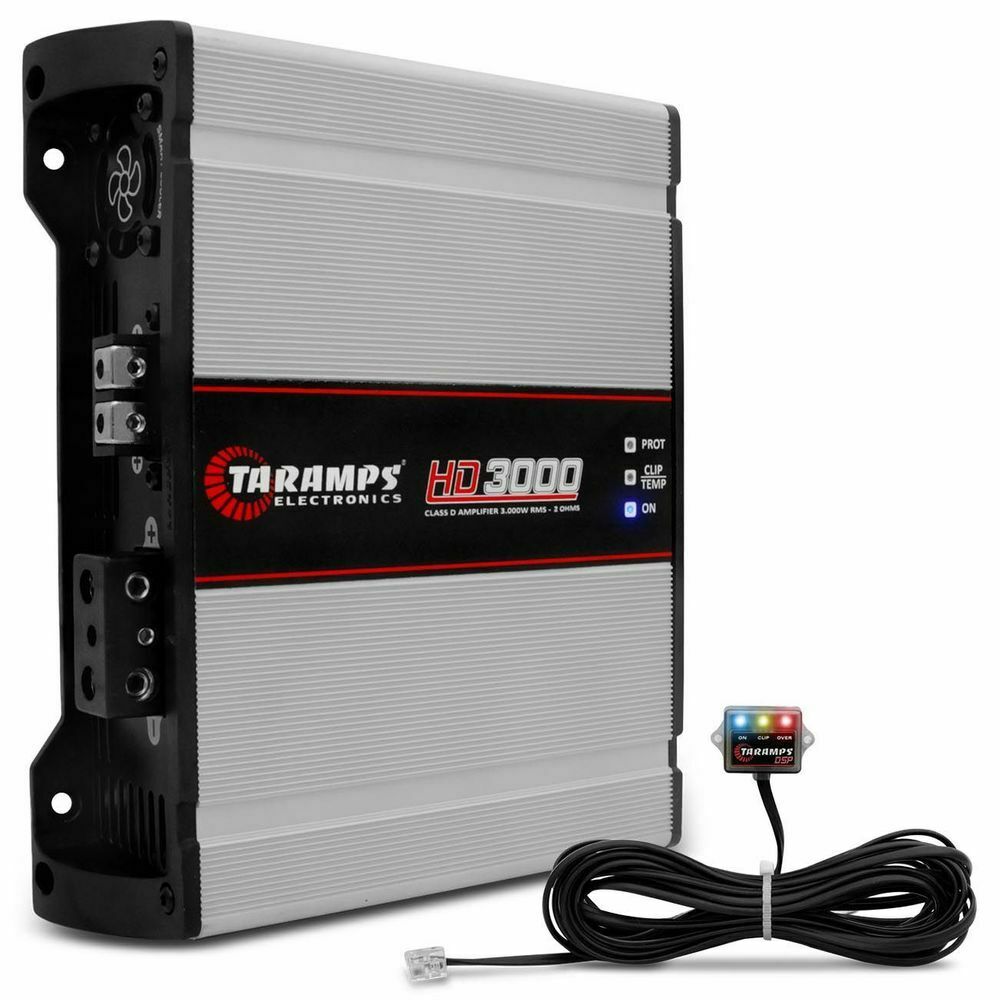

Amplificador Taramps HD3000-2 ( HD 3000 WATTS ) Taramp's Brasil
HD 3000 2 OHMS Taramps
Technical Specs
| OPERATION CLASS |
(PT) Classe D |
| NUMBER OF CHANNELS |
(PT) 01 |
| MAXIMUM POWER |
(PT) 3000W RMS |
| INPUT SENSITIVITY |
(PT) 230mV |
| SIGNAL TO NOISE RATIO |
(PT) 89dB |
| FREQUENCY RESPONSE |
(PT) 10Hz a 20KHz (-3dB) |
| CROSSOVER HIGH PASS (HPF) |
(PT) 10 a 80Hz (-12dB/8ª) Variável |
| CROSSOVER LOW PASS (LPF) |
(PT) 80Hz a full (-12dB/8ª) Variável |
| BASS BOOST |
(PT) 0 a 10,5dB em 50Hz |
| THERMAL MANAGEMENT |
(PT) Smart Cooler (cooler acionado por temperatura ou áudio, com 3 velocidades) |
| EFFICIENCY |
(PT) 83% |
| INPUT IMPEDANCE |
(PT) 18K OHMS |
| PROTECTION SYSTEM |
(PT) Curto na Saída/ Tensão de alimentação alta/baixa / Proteção Térmica |
| MIN. SUPPLY VOLTAGE |
(PT) 9VDC |
| MAXIMUM POWER SUPPLY VOLTAGE |
(PT) 16VDC |
| CONSUMPTION AT REST |
(PT) 1,7A |
| MAXIMUM MUSIC CONSUMPTION |
(PT) 143,5A |
| MAXIMUM CONSUMPTION IN SINUSOIDAL SIGNAL |
(PT) 287A |
| DIMENSIONS (H X W X D) MM |
(PT) 229 X 65 X 186mm |
| WEIGHT |
(PT) 2,0Kg |
