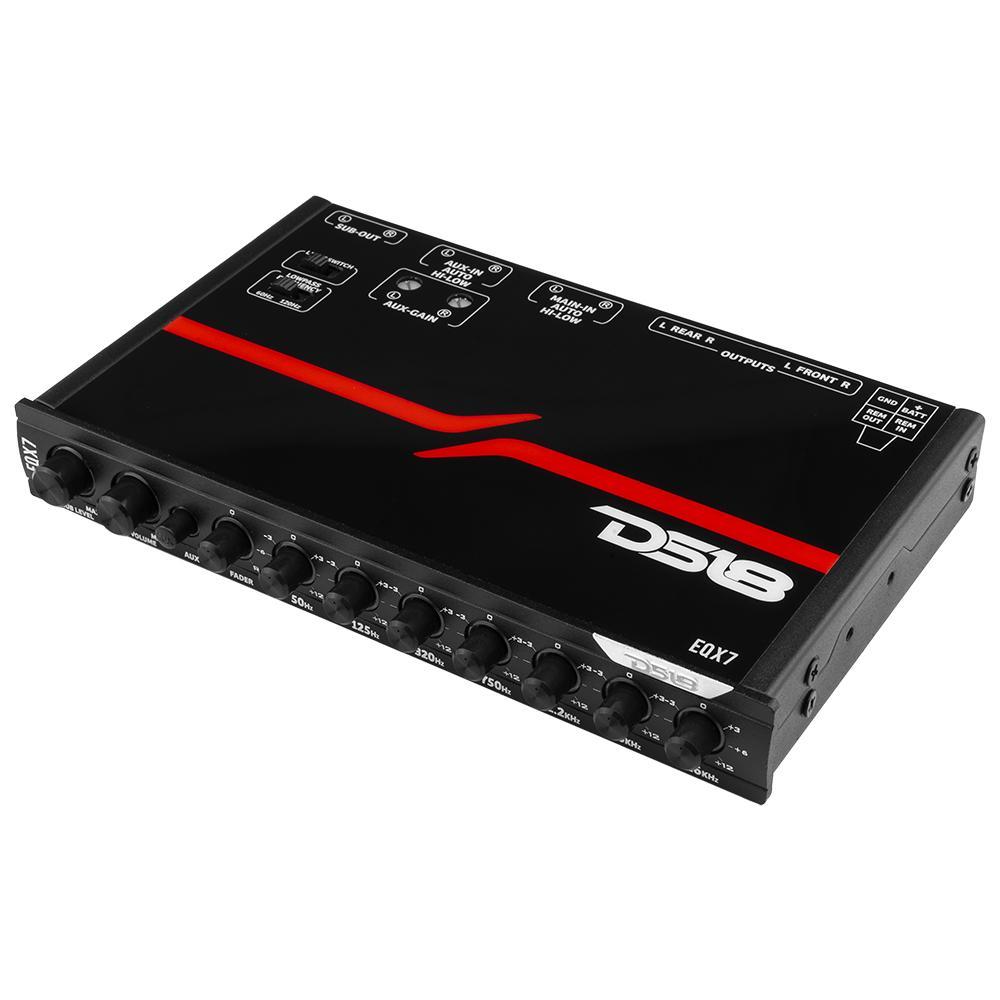

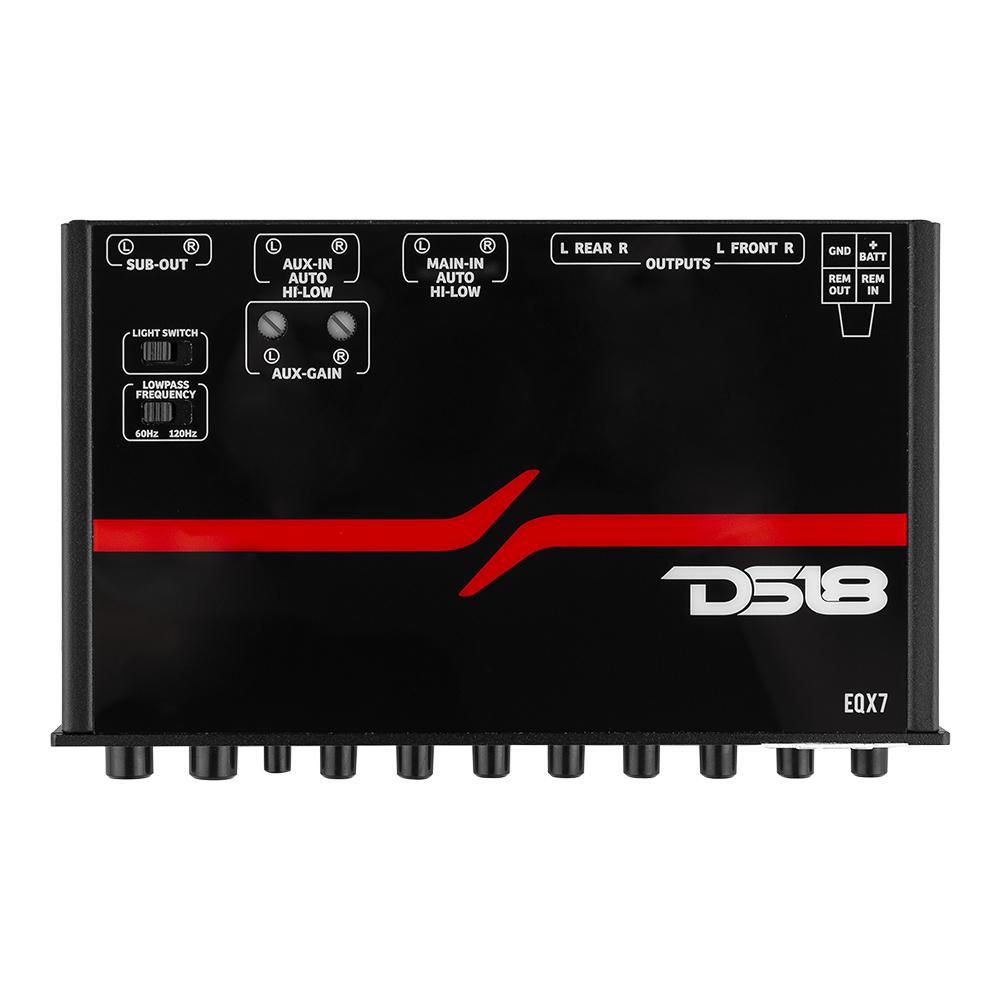

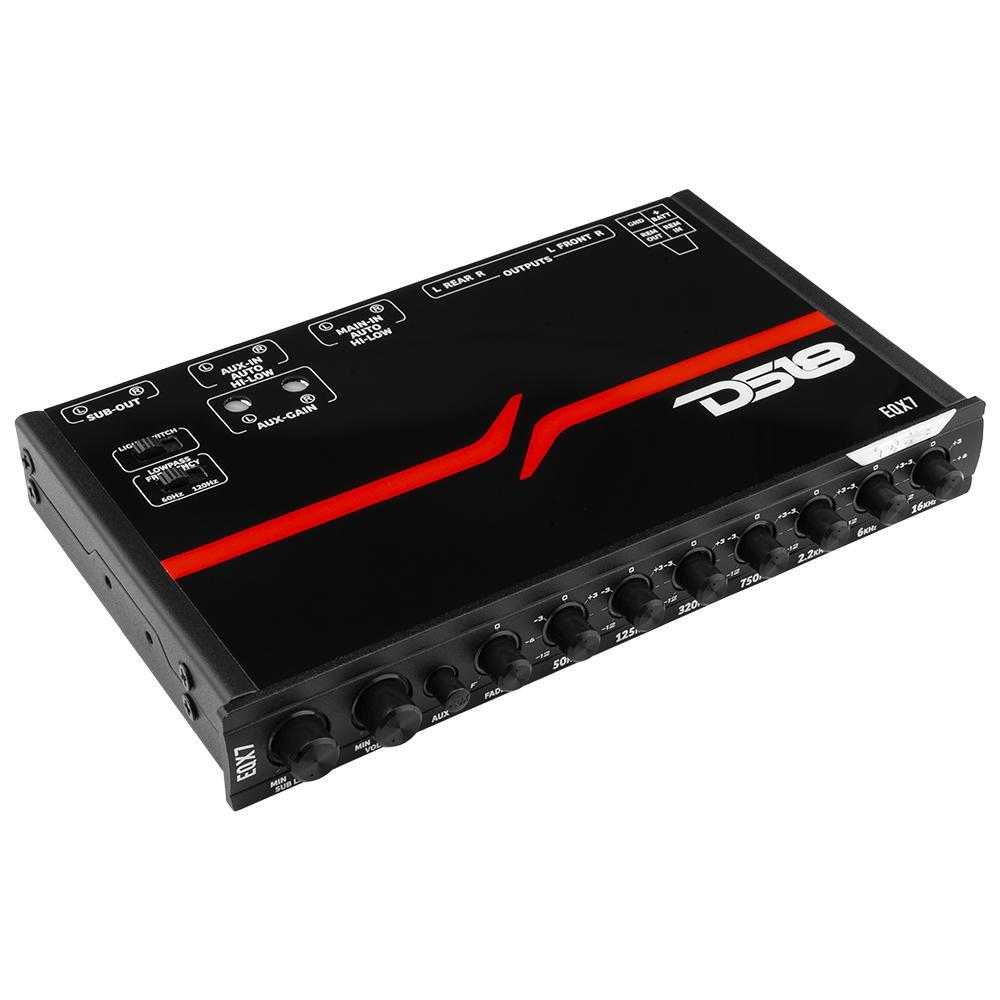

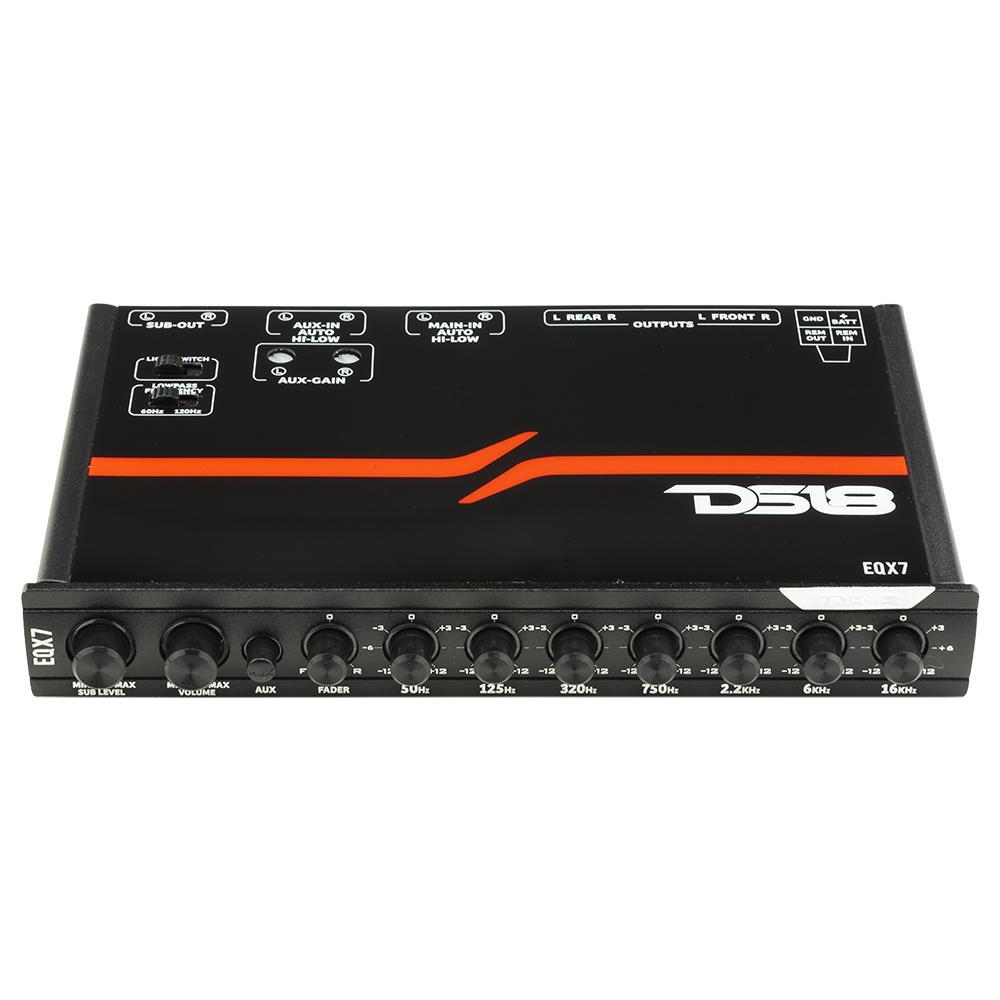

DS18 EQX7 8 Volts , 7-Band Equalizer with High Level Input and Auto Turn On
| Model |
EQX7 |
| Boost / Cut |
12dB |
| S/N ratio |
100dB |
| Frequency Response |
10Hz-50KHz +/-1dB |
| Maximum Output voltage |
8V |
| THD |
0.005% |
| Input impedance |
50mV- 3 V |
| Head Room |
20 dB |
| Output impedance |
2K Ohms |
| Input impedance |
20K Ohms |
| Stereo Seperation |
82 dB/1 KHz |
| Operating voltage |
11V-15V Negative Ground |
| Dimension(L x W x H) |
7" x 4.40" x 1.18" |
