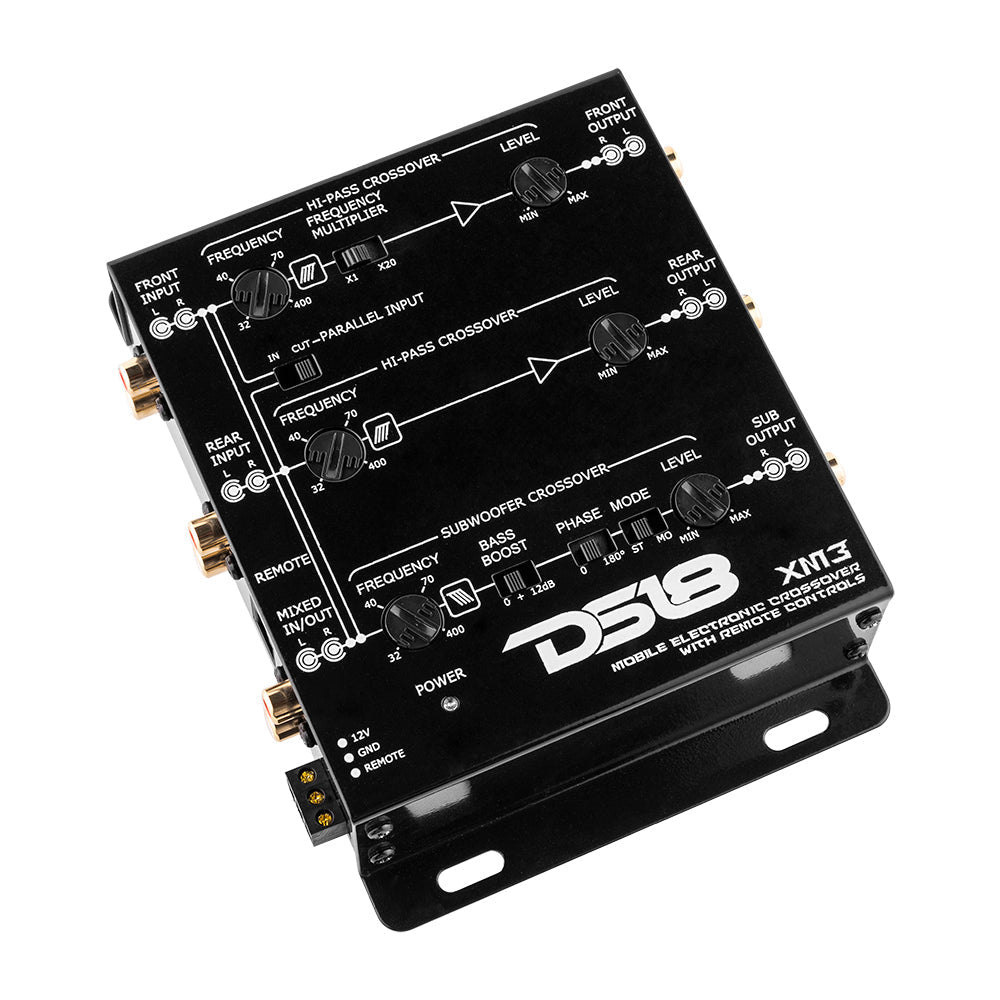

DS18 DS-XM3 Two-to-Three Way Electronic Crossover with Remote Control
| Model: |
XM3 |
| Supply Voltage: |
9-15VDC |
| Maximum Output (10 K_Load): |
9vrms |
| Low Level Input Voltage: |
4vrms |
| Remote Sub Level: |
18dB Boost |
| Crossover Frequencies: Front High Pass, Rear High Pass, and Subwoofer: |
32Hz to 400Hz |
| Crossover Slopes: |
12dB/Octave Butterworth |
| Total Harmonic Distortion (1KHz, 1 VRMS): |
0.01% |
| Signal to Noise Ratio: |
>102dB |
| Features: |
LED Power Indicator
PWM Power Supply
Ground and Remote Connector
Bass Boost Power
Gold RCA Input and Output connectors
Detected Frequency Selection Control
0-180 Degree Subwoofer Phase Switch

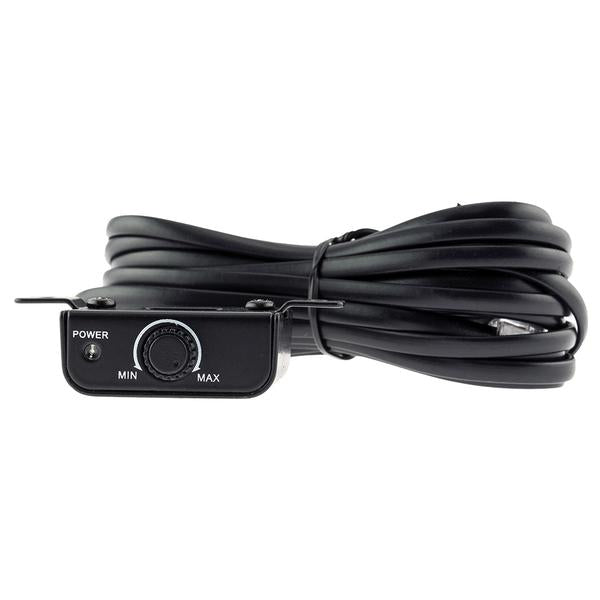

Remote Sub Level Control
3 Way Active Crossover with x20 Frequency Multiplier Switch |
