Crossover Taramps CRX5-PLUS - Nuevo Modelo

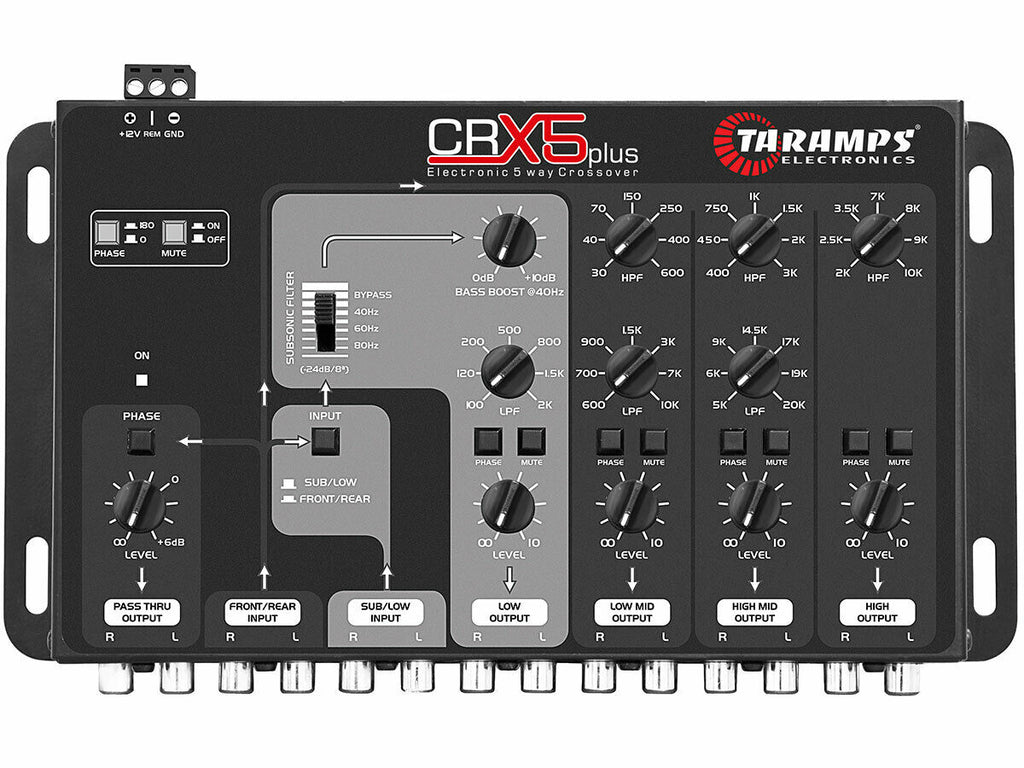

Taramps CRX5 Plus
The CRX 5 Plus crossover is carefully developed with state-of-the-art technology, alongside cutting edge components and quality raw materials. Therefore, it is a reliable product for automotive audio systems. Offering five ways, it has exclusive features, such as subsonic filter on the low way, full-range input, selectable subwoofer input, pass-thru input, and ways that can be muted and have their phase adjusted. Besides that, it also has a BASS BOOST control, which is a reinforcement for bass frequencies on the low way.
Technical specifications:
Pass Thru Way( R+L )
Selectable phase: 0/180º
Low Way (R+L) Mono
Subsonic Filter: Selectable (Bypass/40/60/80Hz)(-24dB/8ª butterworth)
Low Pass Filter: Variable 100Hz ~2KHz (-12dB/8ª Linkwitz-Riley)
Bass Boost: Variable 0 ~+10dB (40Hz)
Selectable phase: 0/180º
Low Mid Way (R+L) Mono
High Pass Filter: Variable 30Hz ~ 600Hz (-12dB/8ª Linkwitz-Riley)
Low Pass Filter: Variable 600Hz ~10KHz (-12dB/8ª Linkwitz-Riley)
Selectable phase: 0/180º
High Mid Way (R e L) Stereo
High Pass Filter: Variable 400Hz ~ 3KHz (-12dB/8ª Linkwitz-Riley)
Low Pass Filter: Variable 5KHz ~20KHz (-12dB/8ª Linkwitz-Riley)
Selectable phase: 0/180º
High Way (R e L) Stereo
High Pass Filter: Variable 2KHz ~ 10KHz (-12dB/8ª Linkwitz-Riley)
Selectable phase: 0/180º
Input Impedance: 10K ohms
Output Impedance: 470K ohms
Maximum input level R/L: 4,57V RMS (+15,4 dBu)
Maximum output level R/L: 9,3V RMS (+21,6 dBu)
Maximum output Pass Thru R/L: 9,3V RMS (+21,6 dBu)
Crosstalk: >85dB
Protection: Reverse polarity
Voltage Range: 10,5 ~16VDC
Nominal Consumption (12.6): 420mA @ 12,6 Vcc
Dimensions (WxHxD): 9.37" x 1.57" x 5.71"
Weight: 1.54lb
On Package:
- 1 Taramps CRX 5 Plus
- Manual
