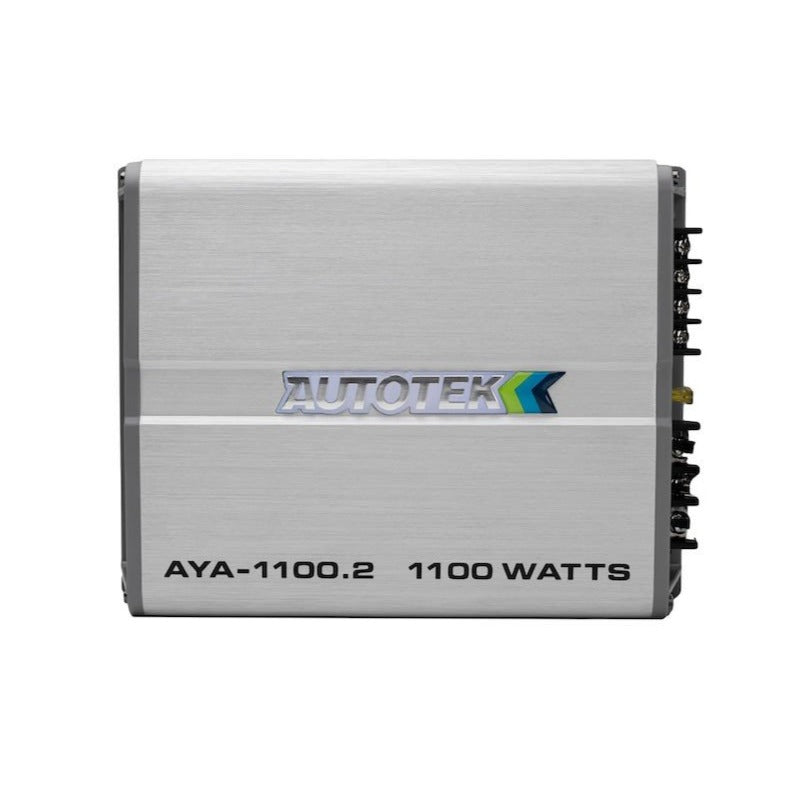

Amplificador Autotek AYA1100.2 1100 Watts Alloy Two Channel Car Audio Amplifier
Autotek Alloy with QTD Technology delivers 1100 watts and includes built-in electronic crossovers.
Specifications
-
CLASS
Class A/B
-
TOTAL CHANNELS
2
-
POWER @ 1 OHM (CH X WATTS)
N/A
-
POWER @ 2 OHMS (CH X WATTS)
2 x 35
-
POWER @ 4 OHMS (CH X WATTS)
2 x 30
-
MONO BRIDGED @ 4 OHMS (CH X WATTS)
1 x 60
-
CROSSOVER
Variable Electronic 12dB Per Octave
-
TONE CONTROL/PARAMETRIC EQ
Built-in bass control
-
BASS BOOST
Switchable: 0 / +6 / +12dB
-
VARIABLE VOLTAGE
.2 to 9V
-
FREQUENCY RESPONSE
10Hz-22kHz
-
SPEAKER LEVEL AUDIO INPUTS
Yes
-
POWER TERMINAL 12V/GND
4 AWG
-
SPEAKER TERMINAL WIRE GAUGE
12 AWG
-
FUSING
20A
Features & Benefits
-
LOW NOISE PREAMPLIFIER CIRCUIT
Maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.
-
RCA INPUTS
Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
-
HIGH LEVEL INPUTS
Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
-
OPERATION MODE
Stereo, Bridged Mono or Stereo/Bridged Mono Simultaneously
-
CROSSOVER TYPE
Variable Electronic 12dB Per Octave
-
ELECTRONIC EQUALIZER
Fully Adjustable 12dB Crossovers
-
CLASS/TOPOLOGY
Class A/B: High sound quality circuit that allows Alloy to develop high levels of power with minimal distortion.
-
OUTPUT DEVICE TECHNOLOGY
PRO-FI™ High Speed MOSFETS bring extreme power with high sound quality and minimum distortion levels.
-
HEAT SINK
QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
-
POWER SUPPLY
High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.
-
OUTPUT CONNECTIONS
Nickel Plated Brass Connection with terminals allow for secure connection while resisting corrosion.
-
CONNECTION TYPE
Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
-
LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.
