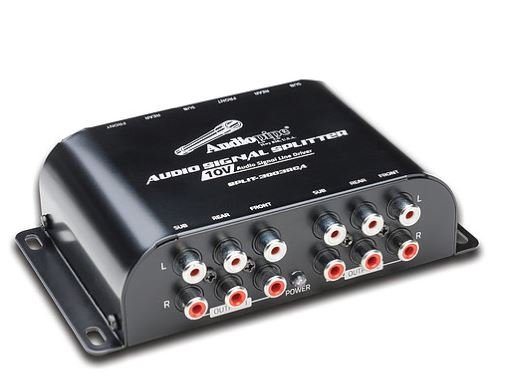

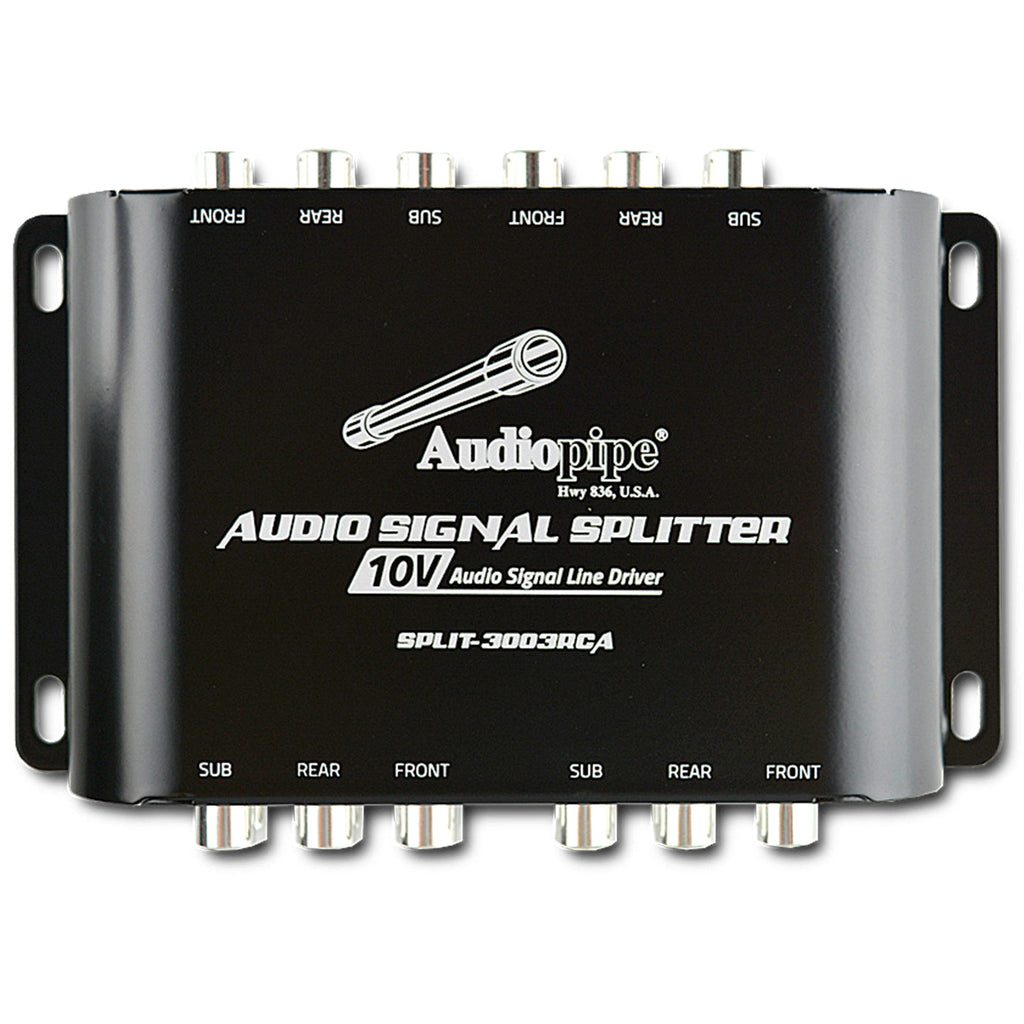

🔌 Audiopipe SPLIT-3003RCA – RCA 1-In / 3-Out Splitter with 10V Line Driver (BFCM Edition)
Optimize and expand your car audio system with the Audiopipe SPLIT-3003RCA, a powerful 1-in / 3-out RCA splitter featuring a built-in 10-volt line driver for superior signal strength and clarity.
Perfect for multi-amplifier setups, high-performance builds, and BFCM upgrades, this splitter ensures clean, distortion-free audio throughout your entire system.
🔥 Key Features
-
🔌 RCA 1 Input / 3 Outputs – Ideal for multi-amp configurations
-
⚡ Built-in 10V Line Driver – Boosts signal strength for cleaner, louder performance
-
🎚️ Includes Remote Bass Knob – Convenient sub/bass level adjustment
-
🎵 Ultra-Low Distortion (0.009%) – Maximum clarity and detail
-
📈 Output Gain: +12dB for powerful system tuning
-
🔧 High Input Impedance (47kΩ) – Ensures compatibility with most head units
-
🎶 Wide Frequency Response: 20Hz – 20kHz
-
🔊 Perfect for competition, voceteo, and multi-amp builds

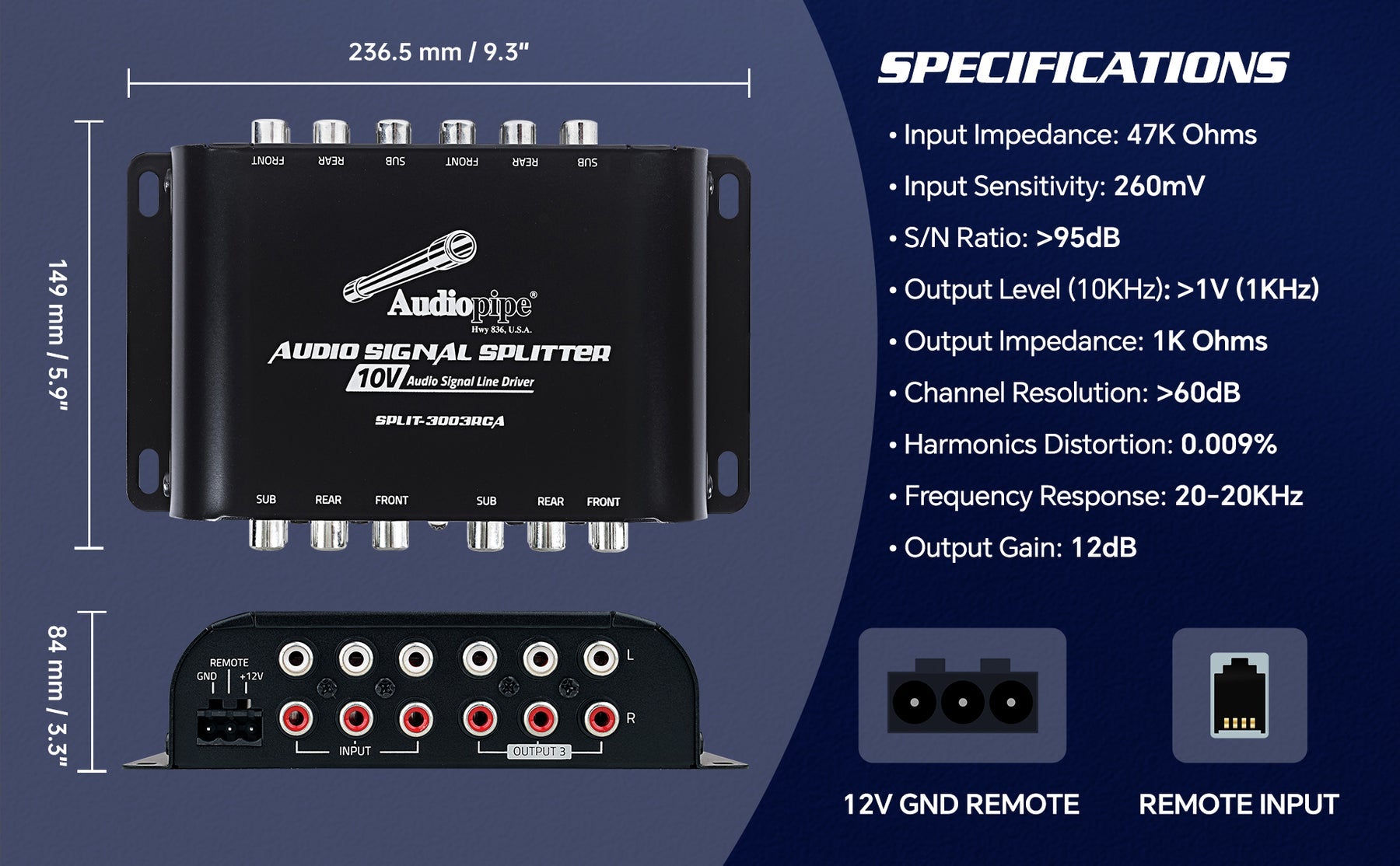

📊 Technical Specs
-
Model: SPLIT-3003RCA
-
Input Sensitivity: 260mV
-
S/N Ratio: >95dB
-
Output Level (10kHz): >1V
-
Output Impedance: 1kΩ
-
Harmonic Distortion: 0.009%
-
Channel Resolution: >60dB
-
Max Output Voltage: 10V
💥 Why It’s a Must-Have
If you're running multiple amplifiers or want the cleanest possible signal flow, the SPLIT-3003RCA gives you:
-
Stronger output to each amplifier
-
Reduced noise & distortion
-
Better bass control
-
Cleaner, balanced audio across the whole system
A perfect addition for BFCM upgrades, high-output systems, and professional car audio installations.
