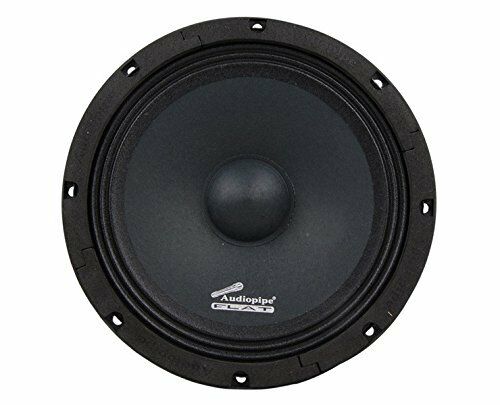

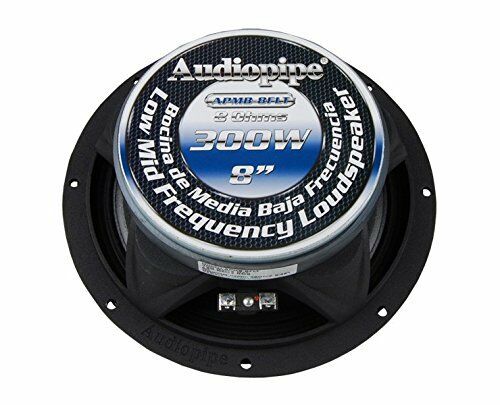

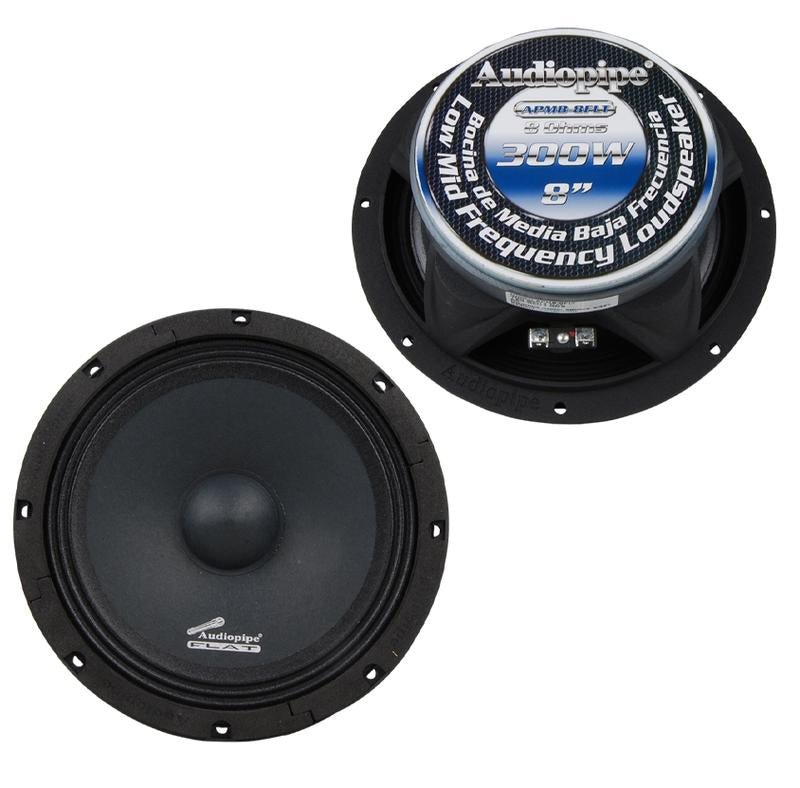

Bocina Audiopipe APMB-8FLT de Voceteo Slim c/u
Audiopipe 8" Flat Shallow Mount Loudspeaker 300 Watts Peak
General Features:
- 8" APMB Series Flat Mount Midrange Driver
- Power Handling:
- Peak: 300 watts
- RMS: 150 watts
- Recommended power range: 10 - 150 watts RMS
- Low mid frequency loudspeaker
- Loudspeaker design provides pro audio quality sound in your car
- High quality paper cone
- Corrugated surround
- Flat housing design keeps mounting depth to a minimum
- Classic dust cap design to protect the internal speaker components
- Heavy duty 34 oz. magnet
- Durable 1.5" TIL voice coil
- 8 ohms impedance
- Frequency Response: 70-8,000 Hz
- Top-mount Depth: 2-5/16"
- Mounting Diameter: 7-1/4"
- Sensitivity: 93dB
Specifications:
- FS (Free Air Resonance): 101 Hz.
- RE (DC Resistance): 6.3 ohms
- Le (Voice Coil Inductance): 0.22 mH
- QMS (Mechanical Q Value): 2.4
- QES (Electrical Q Value): 0.97
- QTS (Total Speaker Q Value): 0.69
- VAS (Equivalent Compliance): 6.7 L (0.24 cu ft.)
- Xmax (One-Way Linear Excursion): 0.25mm (0.01")
- F3 (for Sealed Enclosure):
- 0.32 cu ft.: 112 Hz
- 0.65 cu ft.: 107 Hz
- F3 (for Vented Enclosure):
