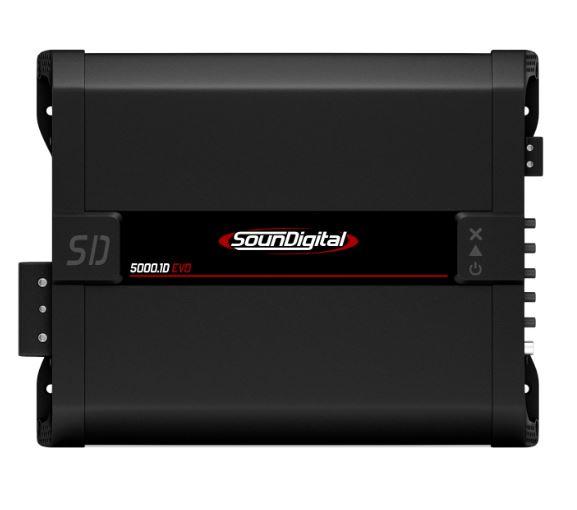

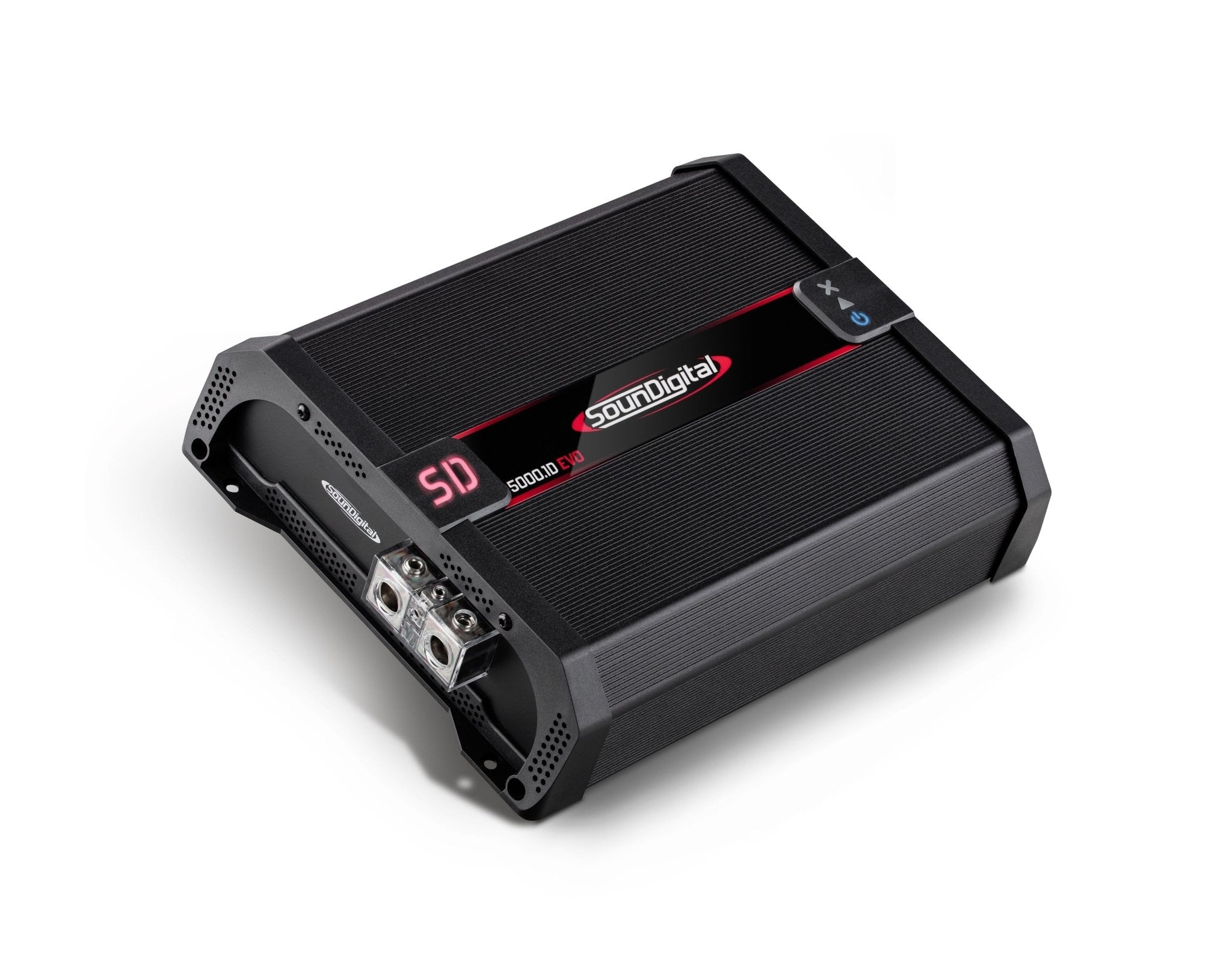

Amplificador Soundigital EVO4 5000.1 2ohm
5000.1 EVO 4.0– 2Ω
Power @ 12.6V @ 2Ω: 1 X 5000 WRMS
Power @ 12.6V @ 4Ω: 1 X 3300 WRMS
Power @ 14.4V @ 2Ω: 1 X 5575 WRMS
Power @ 14.4V @ 4Ω: 1 X 3680 WRMS
Operating Voltage: 8V – 16V
Current Draw (Music): 251 A
Current Draw (Max): 502 A
Recommended Fuse (Music): 250 A
Total Efficiency: 79%
Damping Factor: >1000
Frequency Response (-3dB): 5Hz – 500Hz
SNR: 86dB
Crossover HPF: 5Hz – 30Hz
Crossover LPF: 50Hz – 500Hz
THD + N (10% Rated Power): 0.08%
Product Dimensions: 11.8 x 8.8 x 2.8 in
Product Dimensions: 29.9 x 22.5 x 7.1 cm
