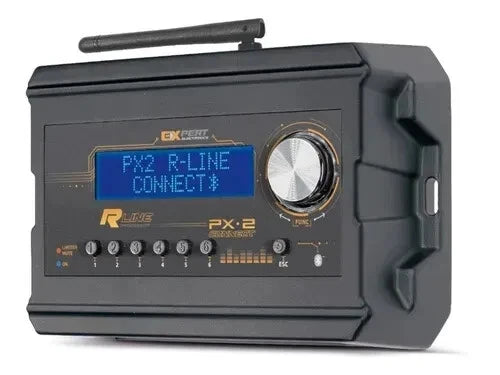

🎛️ Expert Electronics PX2 Connect – 6-Way Digital Equalizer & 46-Band Sound Processor
Unlock the true potential of your car audio system with the Expert Electronics PX2 Connect, an advanced 6-way digital sound processor engineered for precision tuning, cleaner signal output, and professional-grade performance 🔊🚀.
Designed for serious audio enthusiasts and custom builds, this processor gives you total control over frequencies, crossover points, delays, and gain, allowing you to create a perfectly balanced soundstage inside your vehicle.
⭐ Key Benefits
🎚️ 46-Band Equalization – Dial in every frequency for crystal-clear sound and perfect tonal balance.
🔊 6 Independent Outputs – Fully control highs, mids, and lows for a truly active system setup.
📱 Bluetooth Connectivity – Adjust settings wirelessly for fast, real-time tuning.
⚡ Ultra-Clean Signal Processing – Reduces distortion and maximizes amplifier performance.
🏆 Competition-Level Tuning Power – Ideal for SPL, voceteo, and high-end sound quality systems.
🔥 Advanced Features
✔️ Dual Digital Inputs
✔️ 6 Independent Outputs + 2 Link Outputs
✔️ Flexible Channel Routing
✔️ 28-Band Input Equalizer (¼ octave spacing)
✔️ 3-Band Parametric EQ per Channel
✔️ Multiple Crossover Filters: Butterworth, Linkwitz-Riley, and Bessel (6–48 dB/8º slopes)
✔️ Independent Channel Delay
✔️ Configurable Limiter (threshold, attack, and decay)
✔️ Polarity Inversion
✔️ Independent Channel Gain & Mute
✔️ Pink Noise Generator for precise tuning
✔️ User Password Protection
✔️ 3 Fully Customizable Memory Presets
✔️ Remote Output (300mA)
✔️ Bluetooth Communication Interface
✔️ Multi-language Support
🛠️ Technical Specifications
🔹 Resolution: 24-bit
🔹 Sampling Rate: 48 kHz
🔹 Processing Latency: 1.08 ms
🔹 Frequency Response: 15Hz – 22kHz (-1dB)
🔹 EQ Gain: -12dB to +12dB
🔹 High-Pass Filter: 20Hz – 22kHz
🔹 Low-Pass Filter: 20Hz – 22kHz
🔹 THD + N: 0.02% Max
🔹 Signal-to-Noise Ratio: 100 dB
🔹 Gain Range: -18dB to +6dB
🔹 Phase Adjustment: 0º / 180º
🔹 Power Supply Tolerance: 9–16VDC
🔹 Operating Voltage: 10–15VDC
🔹 Current Draw: 300mA (5W)
🔹 Internal Fuse: 2A
💪 Durable Aluminum Chassis for superior heat dissipation and long-term reliability.
📏 Dimensions & Weight
📐 Size: 154 x 104 x 46 mm (L x W x H)
⚖️ Weight: 0.42 kg
📦 What’s Included
📦 (1) PX2 Connect Digital Crossover / Sound Processor
📘 User Instruction Manual
🚘 Ideal For
✅ Multi-amplifier systems
✅ Active speaker setups
✅ SPL & high-output builds
✅ Sound quality enthusiasts
✅ Professional car audio installations
💡 Why Add a Digital Sound Processor?
Even the best speakers and amplifiers can’t perform at their peak without proper tuning.
The PX2 Connect gives you the tools to shape your sound with precision — delivering louder, cleaner, and more accurate audio.
👉 More control. More clarity. More impact.
