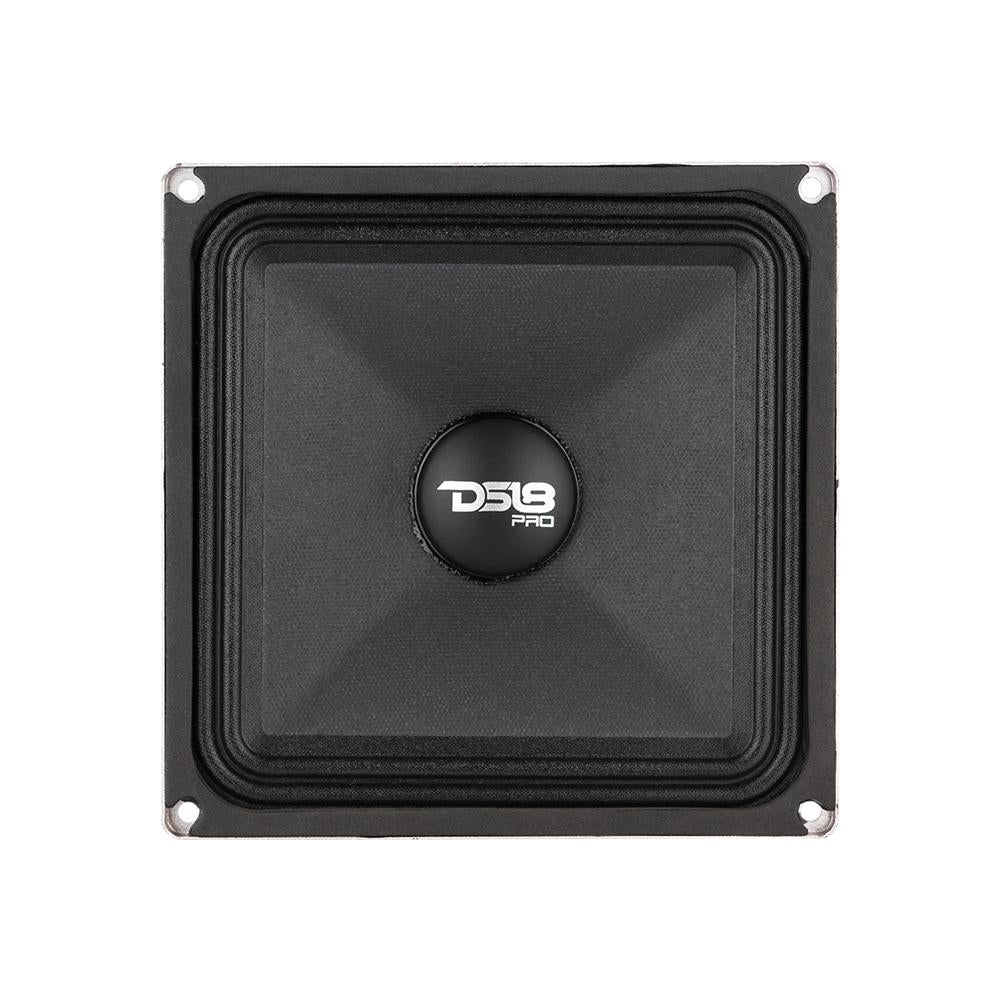

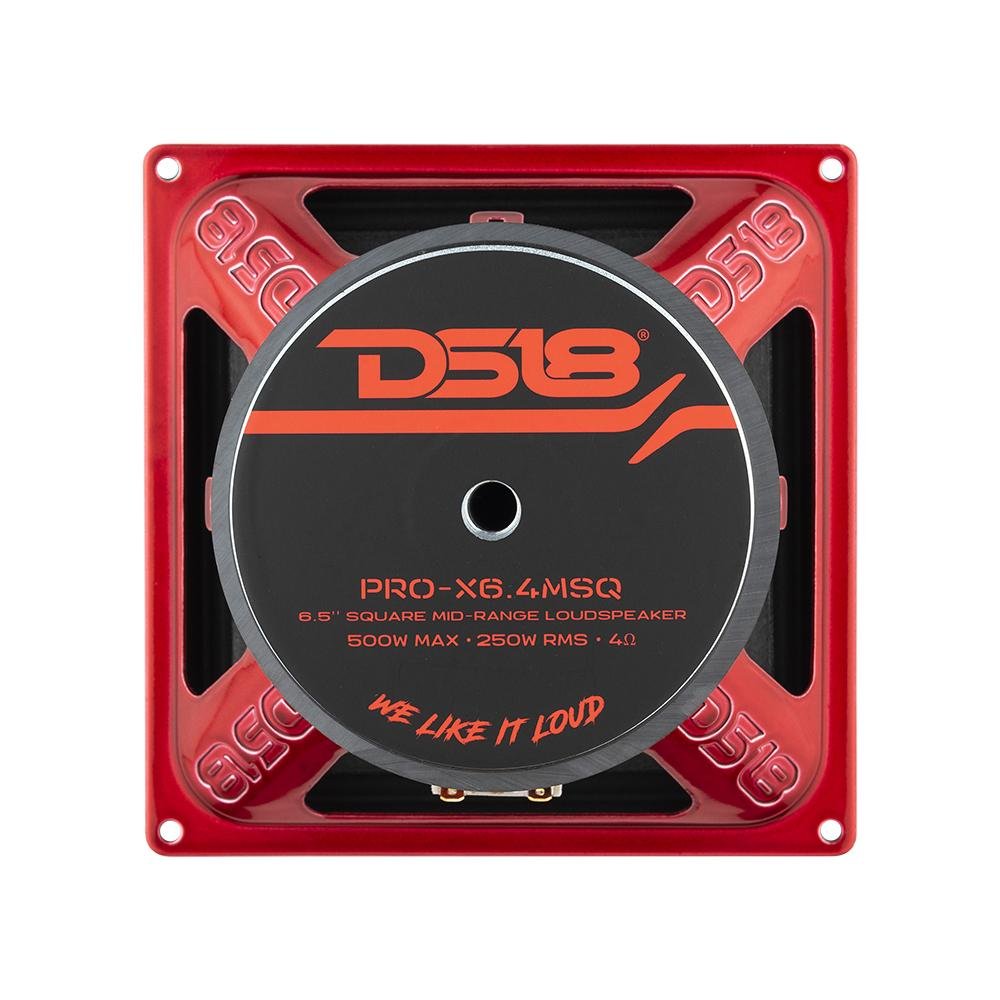

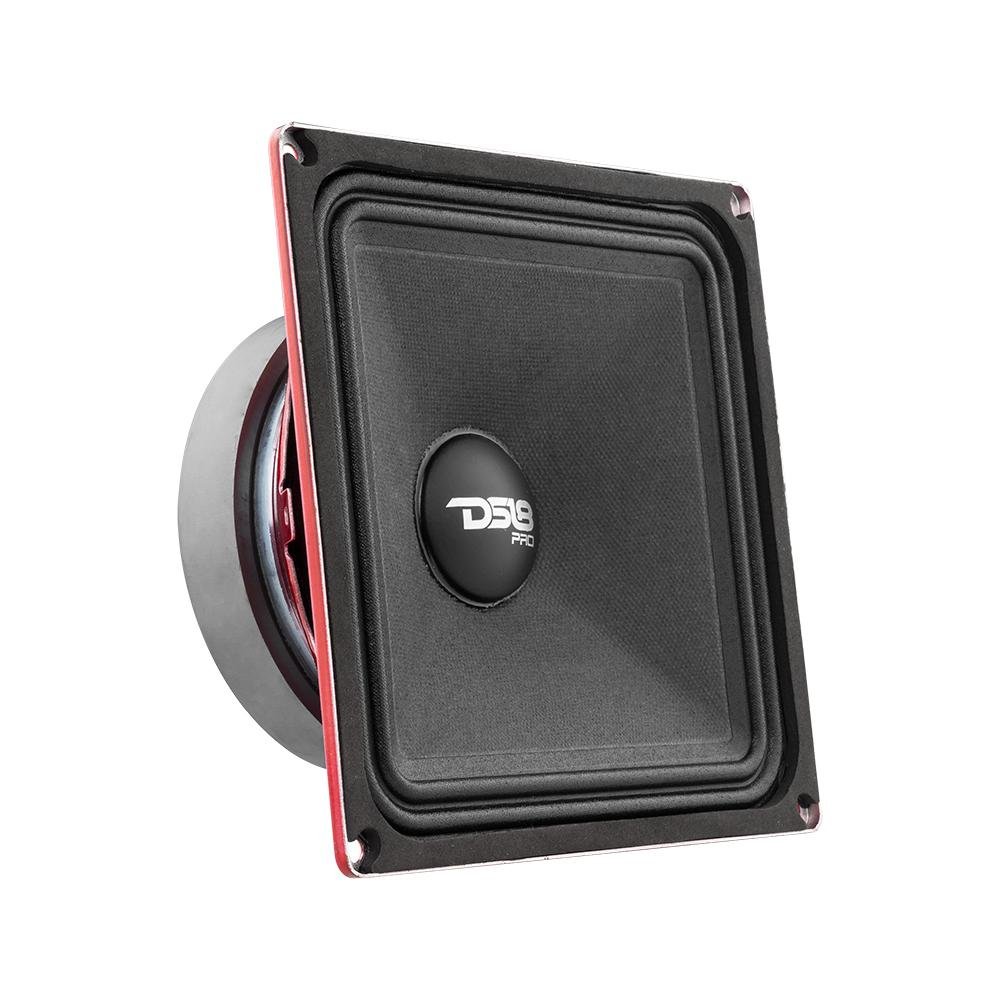

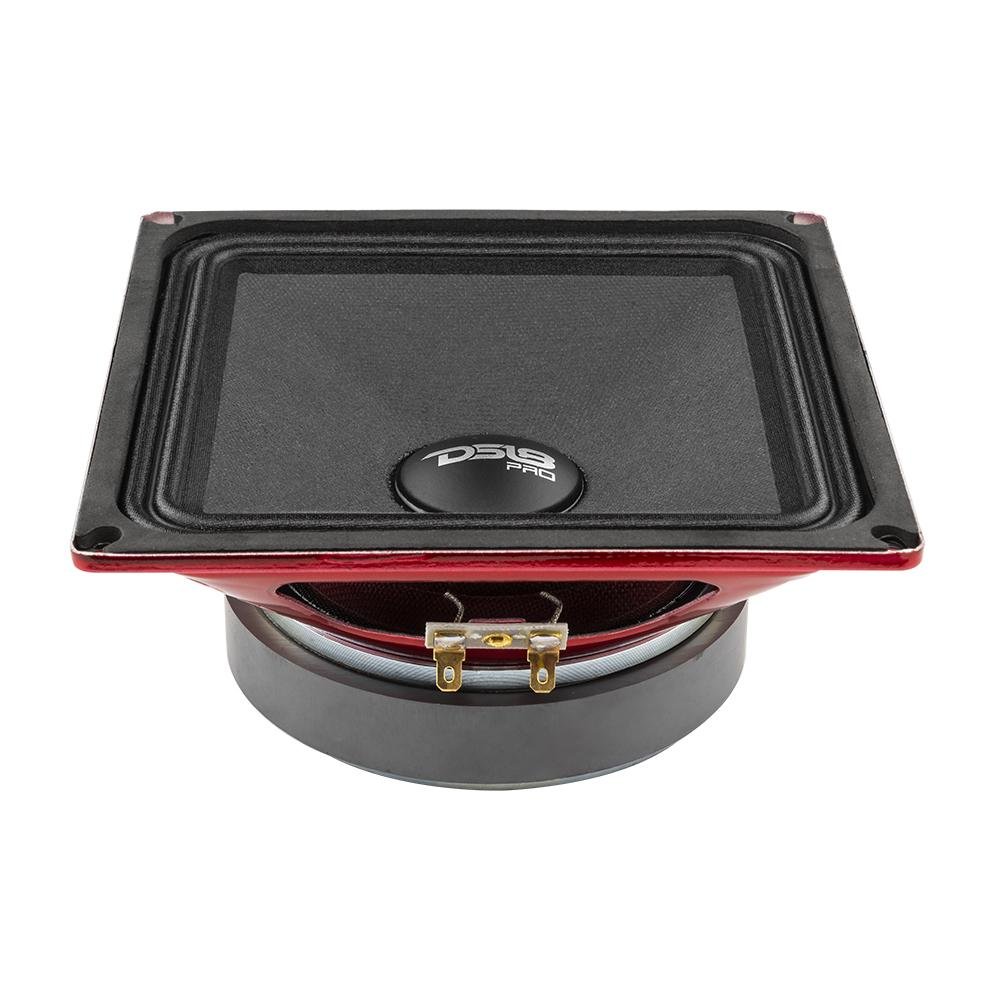

Bocina de Voceteo 6.4" DS18 PRO-X6.4MSQ (Liquidacion) (BFCM)
PRO 6" Square Midrange Loudspeaker 500 Watts 4-ohm
| Specifications |
|
| Nominal Diameter |
6.5x6.5 Square |
| Nominal Impedance |
4 ohms |
| RMS Power Handling |
250W |
| MAX Power Handling |
500W |
| Sensitivity (1w/1m) |
95 dB |
| Frequency Response |
80-16.5KHz |
| Recommended Hi Pass Crossover |
120 Hz |
| Motor: |
|
| Voice Coil Diameter |
1.5 / 38.6mm |
| Voice Coil Former Material |
Kapton |
| Winding Material |
CCAW |
| Cone Material |
Paper |
| Dust Cap Material |
Paper |
| Surround Material |
Cloth |
| Basket Material |
Steel |
| Basket Color/Finish |
Glossy Red |
| Magnet Material |
Ferrite |
| Magnet Weight |
30 Oz |
| Displacement Volume |
0.32L |
| Measurements |
|
| Overall Diameter |
6.61" X 6.61/ 168 X 168mm |
| Overall Depth |
3.11 / 79mm |
| Front Mount Baffle Cutout |
6.02" X 6.02/ 153 x 153mm |
| Mounting Depth |
2.87 / 73mm |
| Motor Diameter |
4.72 / 120mm |
