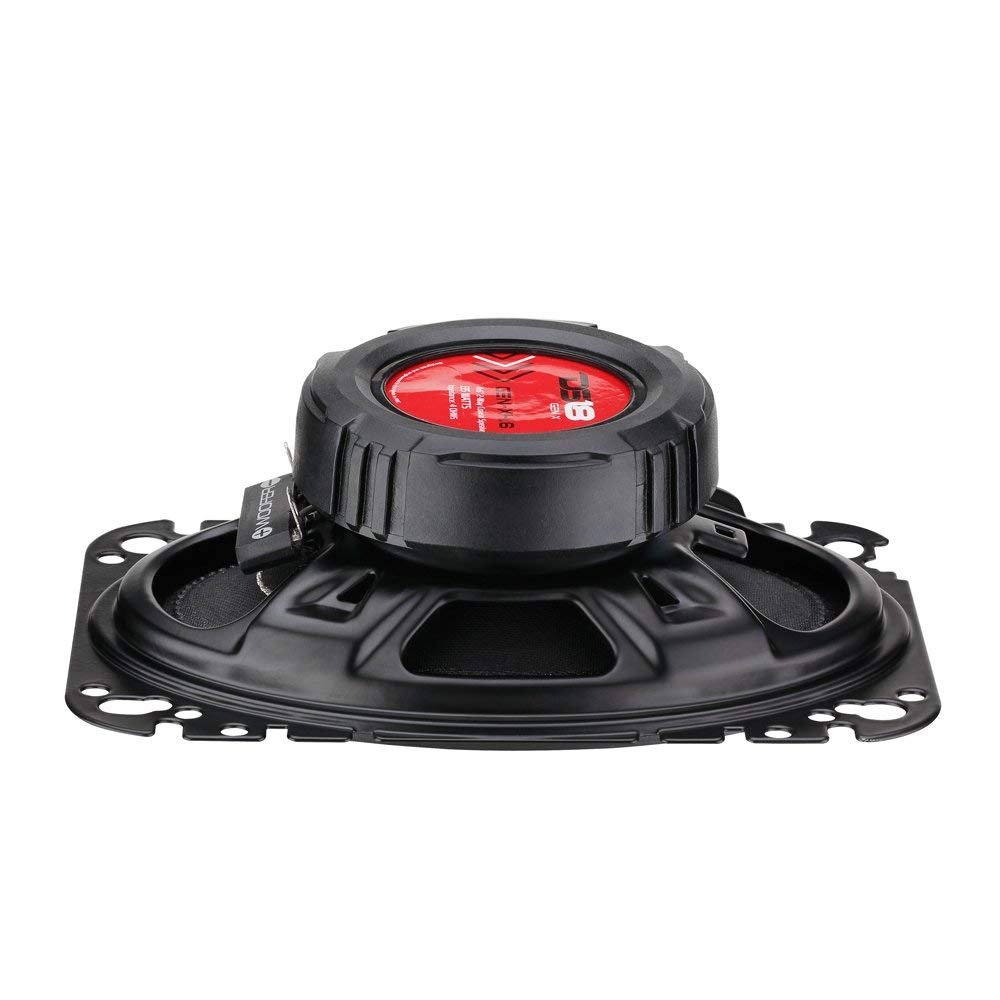

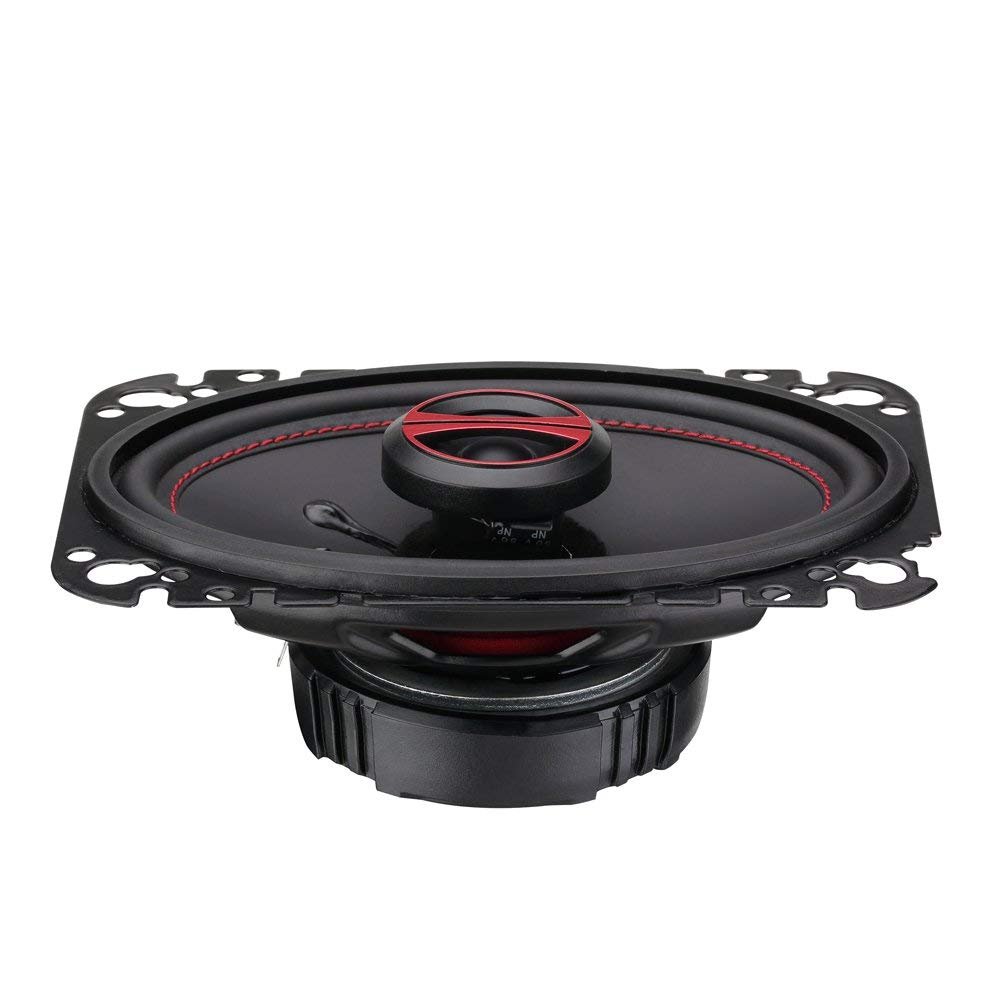

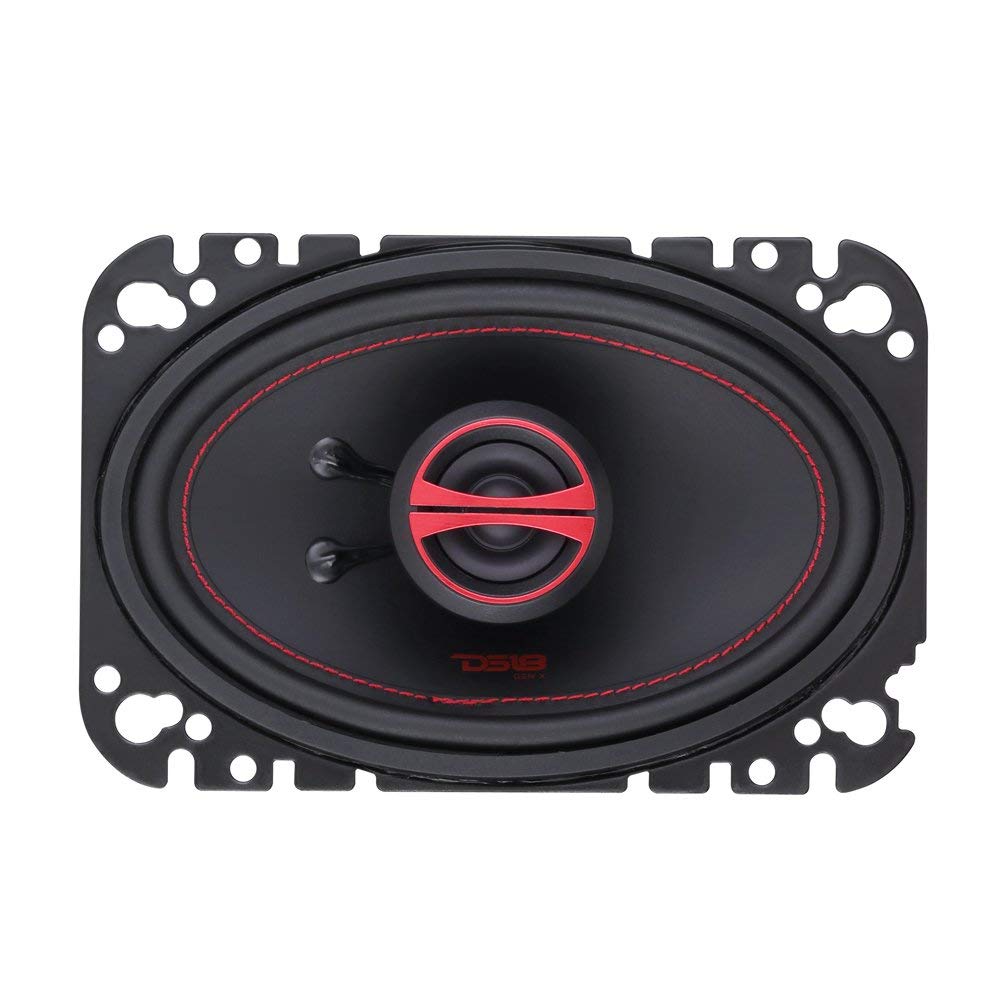

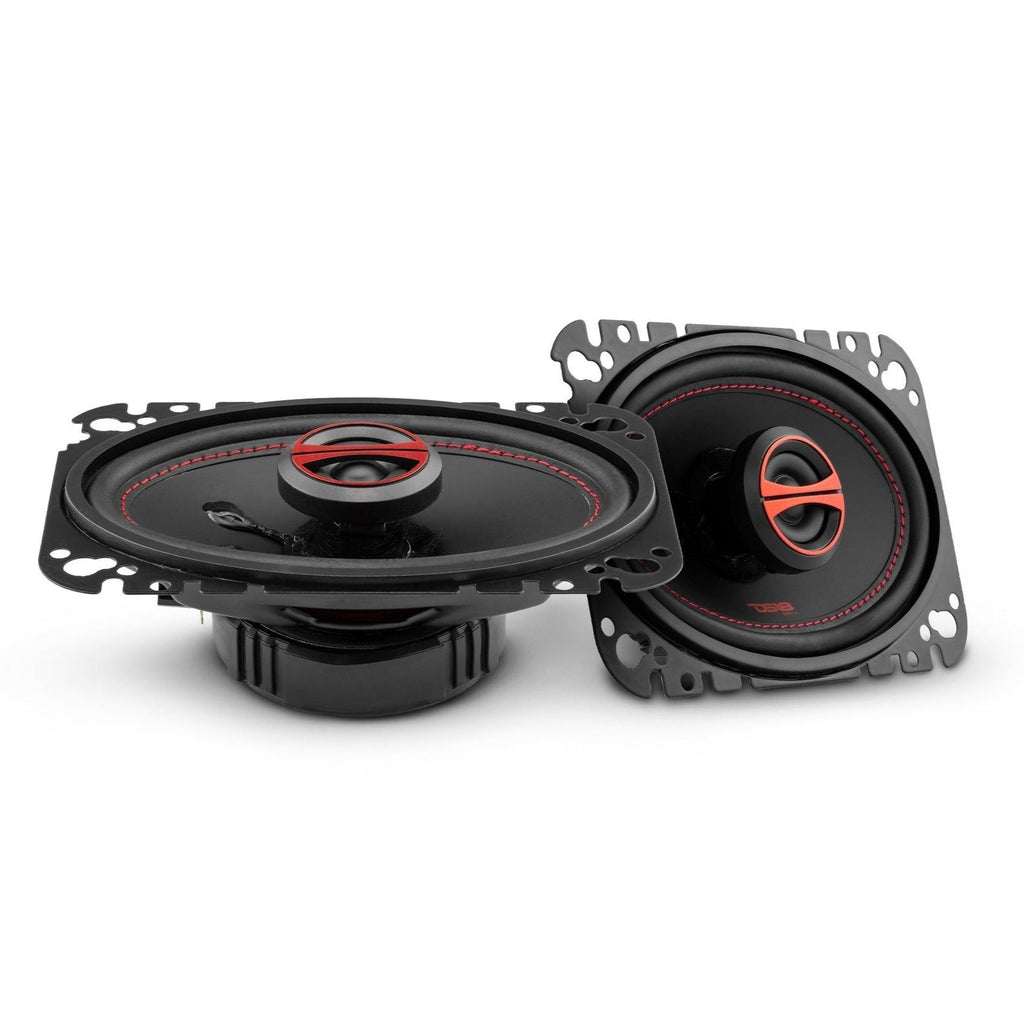

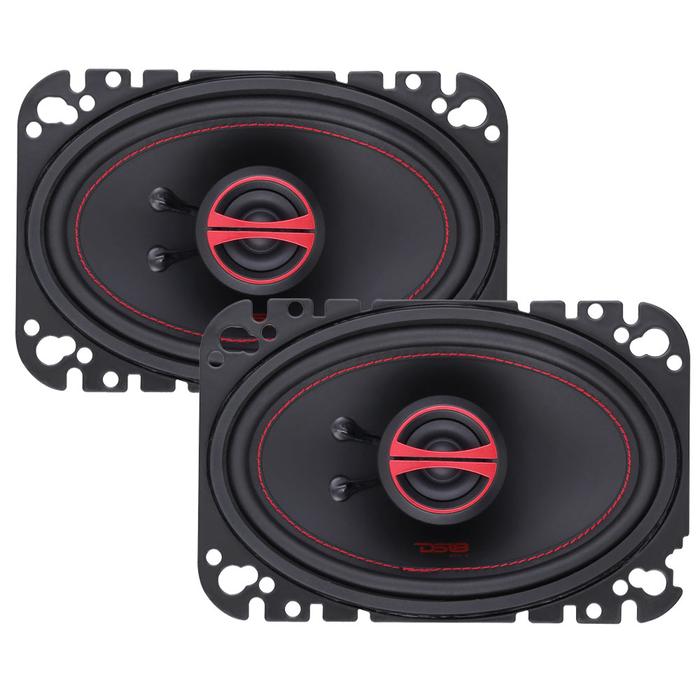

Bocinas 4x6" DS18 GEN-X4.6
DS18 GEN-X4.6 4x6 2-Way Coaxial Car Speaker 135 Watts 4-Ohm
| Model: |
GEN-X4.6 |
| Type: |
Coaxial |
| Size: |
4x6" |
| RMS Power: |
45W |
| MAX Power: |
135W |
| Frequency response: |
105Hz - 20KHz |
| Impedance: |
4 ohms |
| Sensitivity: |
83dB/w/m |
| Materials |
|
| Surround: |
Rubber Edge |
| Cone: |
Black Paper |
| Voice Coil Wire: |
ASV |
| Measurements |
|
| Voice coil size: |
1"(25mm) |
| Magnet Size: |
70x32x12mm |
| Tweeter Size: |
29mm Mylar Dome |
| Mounting depth: |
Top (No Grill): 50mm
Bottom: 45.8mm |
| Cut-out dimension: |
133x75.5mm |
